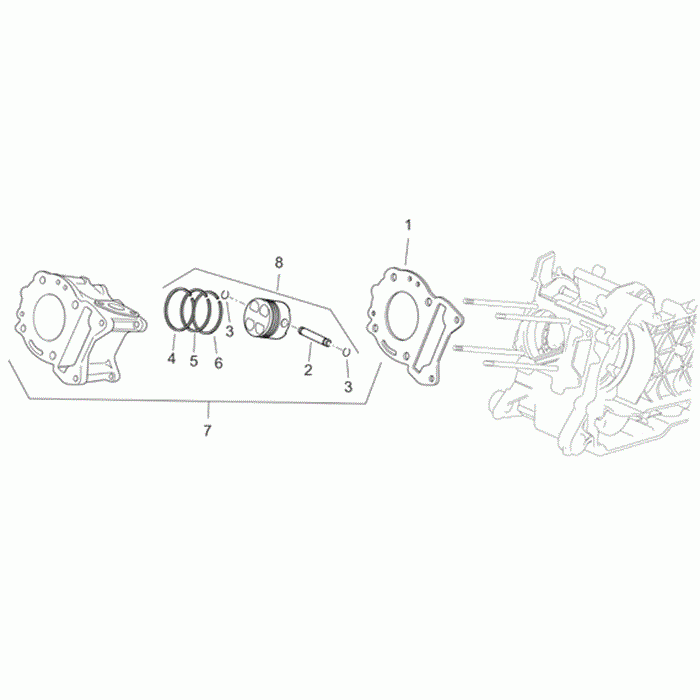

Цилиндр

Aprilia Scarabeo 125-250 E2 (Piaggio Engine)
Aprilia
#oem кодцена
1
AP8580151
Cylinder Base Gasket 0, 8
1
AP8580150
Cylinder Base Gasket 0, 6
1
AP8580149
Cylinder Base Gasket 0, 4
2
AP8580177
Piston Pin 200
2
AP8580001
Piston Pin 125
3
AP8580216
Стопорное кольцо
4
AP8580244
Ring D.72x1, 5 200
4
AP8550499
Ring D.57x1 125-nrl
5
AP8580008
Oil Scraper Ring 2? Magg. 125
5
AP8580002
Oil Scraper Ring D.72x1 200
5
AP8550506
Oil Scraper Ring D.57x1 125-nrl
6
AP8580003
Oil Scraper Ring D.72x2, 5 200
6
AP8550507
Oil Scraper Ring D.57x2, 5 125-nrl
7
AP8580272
Cylinder With Piston 250-gh
7
AP8577016
Cylinder With Piston 250-al
7
AP8590011
Cylinder With Piston 125-mb
8
AP8580047
Piston Assy Cat1 125
8
AP8580036
Piston Assy 2? Magg. 125
8
AP8577018
Piston Assy Cat2 250-al
8
AP8580276
Piston Assy Cat.4 250-gh
8
AP8580050
Piston Assy Cat4 125
8
AP8577017
Piston Assy Cat1 250-al
8
AP8580274
Piston Assy Cat.2 250-gh
8
AP8580048
Piston Assy Cat2 125
