Маховик и водяной насос Оригинальные запчасти для мотоциклов Aprilia Sonic 50 H2O (2006)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

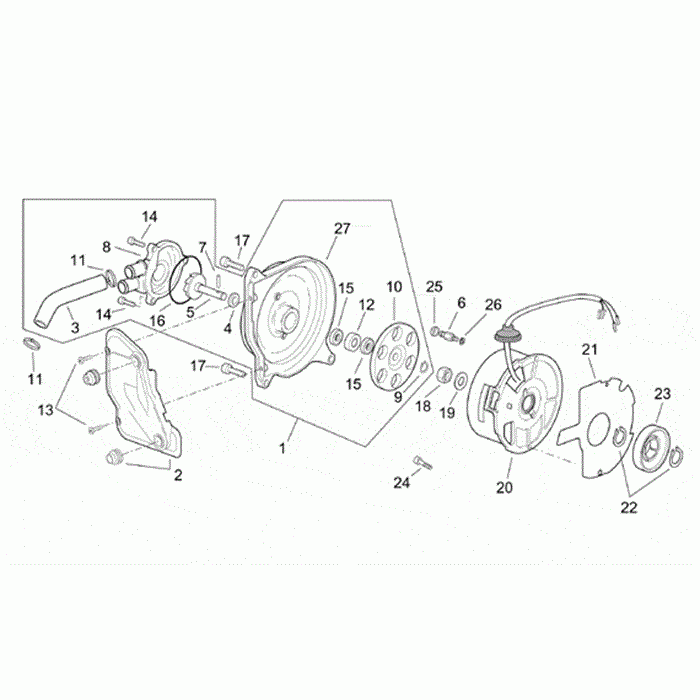

Маховик и водяной насос

Aprilia Sonic 50 H2O

Маховик и водяной насос

#

oem код

название

цена

1

Flywheel Cover

Flywheel Cover

2

Cover+rubber

Cover+rubber

3

Pump-cylinder Hose

Pump-cylinder Hose

4

Oil Seal D10x18x4

Oil Seal D10x18x4

5

Water Pump Shaft+impeller

Water Pump Shaft+impeller

6

Pump Impeller Pin

Pump Impeller Pin

7

Roller D3x21, 8

Roller D3x21, 8

8

Water Pump Casing, Grey

Water Pump Casing, Grey

9

Outside Circlip D8

Outside Circlip D8

10

Pump Impeller Drive Key

Pump Impeller Drive Key

11

Зажим

Зажим

12

Spacer D21, 9x17, 5

Spacer D21, 9x17, 5

13

Screw M5x14

Screw M5x14

14

Screw M5x20

Screw M5x20

15

Bearing D8x22x7

Bearing D8x22x7

16

O-ring D53, 7x1, 78

O-ring D53, 7x1, 78

17

Screw M6x25

Screw M6x25

18

Nut M10x1, 25

Nut M10x1, 25

19

Washer D10, 5x18x2

Washer D10, 5x18x2

20

Cdi Magneto Assy

Cdi Magneto Assy

21

Flyw. Stator Gasket

Flyw. Stator Gasket

22

Outside Circlip D19

Outside Circlip D19

23

Oil Pump Drive Gear

Oil Pump Drive Gear

24

Screw M6x16

Screw M6x16

25

Pump Drive Pin Grommet

Pump Drive Pin Grommet

26

Washer D6

Washer D6

27

Flywheel Cover

Flywheel Cover
