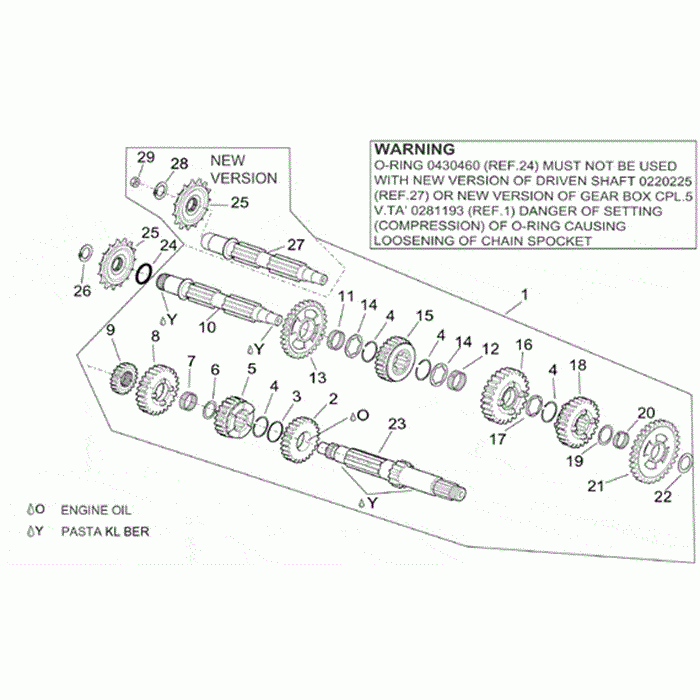

Коробка передач

Aprilia Pegaso 650 IE

Коробка передач

#

oem код

название

цена

1

Gear Box Cpl.5 Speed Old

Gear Box Cpl.5 Speed Old

1

Gear Box Cpl.5 Speed New

Gear Box Cpl.5 Speed New

2

4th Pinion Gear Z=22

4th Pinion Gear Z=22

3

Thrust Washer 25, 6/28, 5/1, 5

Thrust Washer 25, 6/28, 5/1, 5

4

Circlip D25

Circlip D25

5

3rd Pinion Gear Z=16

3rd Pinion Gear Z=16

6

Thrust Washer 21, 2/27, 5/1

Thrust Washer 21, 2/27, 5/1

7

Roller Cage 21x25x13

Roller Cage 21x25x13

8

5th Pinion Gear Z=24

5th Pinion Gear Z=24

9

2nd Pinion Gear Z=16

2nd Pinion Gear Z=16

10

Driven Shaft

Driven Shaft

11

Roller Cage 22x26x10

Roller Cage 22x26x10

12

Roller Cage 22x26x13

Roller Cage 22x26x13

13

2nd Wheel Gear Z=28

2nd Wheel Gear Z=28

14

Упорная шайба

Упорная шайба

15

5th Wheel Gear Z=21

5th Wheel Gear Z=21

16

3rd Wheel Gear Z=21

3rd Wheel Gear Z=21

17

Прокладка

Прокладка

18

4th Wheel Gear Z=23

4th Wheel Gear Z=23

19

Thrust Washer 21, 2/30/1

Thrust Washer 21, 2/30/1

20

Roller Cage 21x25x10

Roller Cage 21x25x10

21

1st Wheel Gear Z=33

1st Wheel Gear Z=33

22

Thrust Washer 17, 2/30/1

Thrust Washer 17, 2/30/1

23

Primary Gear Shaft Z=12

Primary Gear Shaft Z=12

24

O-ring 18x3, 5

O-ring 18x3, 5

26

Circlip Av 20

Circlip Av 20

27

Driven Shaft New

Driven Shaft New

28

Stop Ring New

Stop Ring New

29

Nut M20x1, 5 New

Nut M20x1, 5 New
