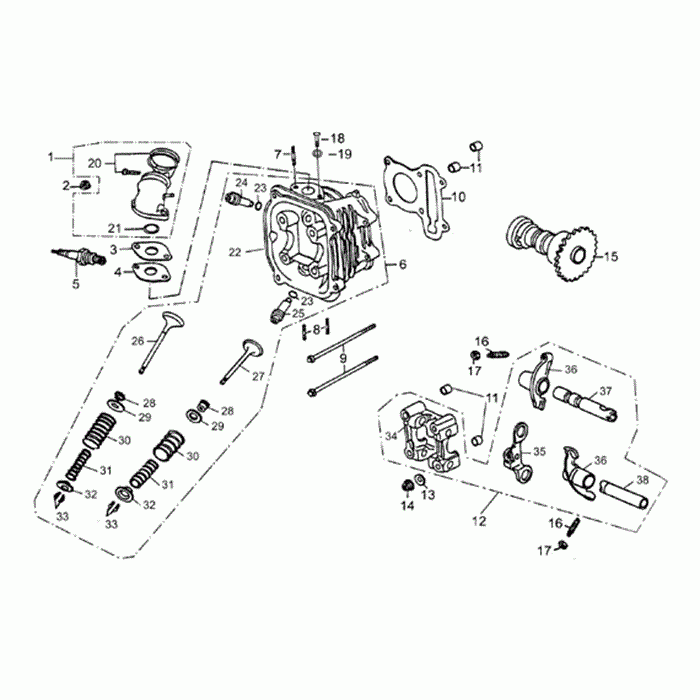

Cylinder head assy.

Aprilia Quasar 125-180
Aprilia
#oem кодцена
1
AP8910707
Intake Manifold 180
1
AP8910708
Intake Manifold 125
2
AP8910372
Nut M6
3
AP8910704
Прокладка
4
AP8910705
Прокладка
6
AP8910625
Cylinder Head Assy. 180
6
AP8910624
Cylinder Head Assy. 125
7
AP8911024
Stud Bolt M6x62
7
AP8911023
Stud Bolt M6x62 180
8
AP8911025
Stud Bolt M8x32 125
9
AP8911101
Screw W/ Flange M6x100
10
AP8910636
Cylinder Head Gasket 180
10
AP8910635
Cylinder Head Gasket 125
11
AP8910406
Pin 10x14
12
AP8910632
Rocker Arms Cpl. 180
12
AP8910631
Rocker Arms Cpl. 125
13
AP8911059
Plain Washer 8x18x2, 3
14
AP8910375
Nut M8x1, 25
15
AP8910657
Camshaft Cpl. 125
16
AP8911010
Винт
17
AP8911013
Гайка
18
AP8911038
Screw 125
19
AP8910381
Plain Washer 6x13x1 125
20
AP8910654
Зажим
21
AP8911033
O-ring 27x2
22
AP8910627
Cylinder Head 180
22
AP8910626
Cylinder Head 125
23
AP8911028
O-ring 9, 5x1, 5
25
AP8910629
Exhaust Valve Guide
26
AP8910674
Exhaust Valve 180
26
AP8910673
Exhaust Valve 125
27
AP8910672
Intake Valve 180
27
AP8910671
Intake Valve 125
28
AP8910630
Valve Guide Seal Fitting Jig
29
AP8910678
Упорная шайба
30
AP8910675
Ext. Valve Spring
31
AP8910676
Int. Valve Spring
32
AP8910677
Тарелка клапана
33
AP8910679
Клапан
34
AP8910634
Camshaft Support 180
34
AP8910633
Camshaft Support 125
35
AP8910665
Пластина
36
AP8910660
Rocker Arm Assy.
37
AP8910662
Int.valve Rocker Arm Rod Pin 180
37
AP8910661
Int.valve Rocker Arm Rod Pin 125
38
AP8910663
Ex.valve Rocker Arm Rod Pin 125
38
AP8910664
Ex.valve Rocker Arm Rod Pin 180
