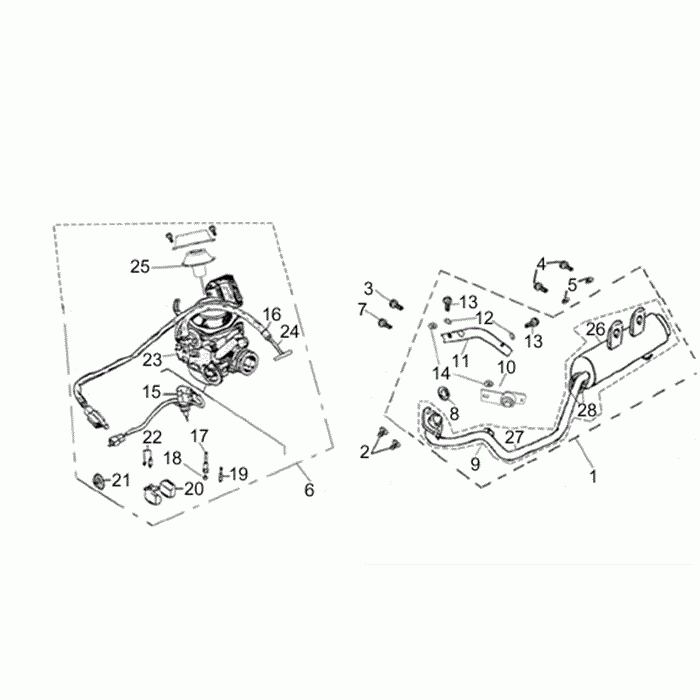

Exhaust unit-carburettor

Aprilia Quasar 125-180

Exhaust unit-carburettor

#

oem код

название

цена

1

Exhaust Pipe, Cpl. 125

Exhaust Pipe, Cpl. 125

1

Exhaust Pipe, Cpl. 180

Exhaust Pipe, Cpl. 180

2

Nut M8 180

Nut M8 180

2

Nut M6 125

Nut M6 125

3

Screw W/ Flange M8x16

Screw W/ Flange M8x16

6

Carburettor Cpl.

Carburettor Cpl.

7

Винт

Винт

8

Gasket 25, 4x33x4

Gasket 25, 4x33x4

9

Exhaust Unit 125

Exhaust Unit 125

10

Exaust Pipe Support

Exaust Pipe Support

11

Exhaust Pipe Protection

Exhaust Pipe Protection

12

Washer 6x13x1

Washer 6x13x1

13

Screw W/ Flange M6x10

Screw W/ Flange M6x10

14

Gasket 8, 5x17x2

Gasket 8, 5x17x2

15

Choke Valve

Choke Valve

16

Stop Ring 6x0, 8

Stop Ring 6x0, 8

17

Needle Valve

Needle Valve

18

Main Jet 110

Main Jet 110

19

Starter Jet 35

Starter Jet 35

20

Поплавок

Поплавок

21

Фильтр

Фильтр

22

Needle Valve

Needle Valve

23

Cable-guide

Cable-guide

24

Соединение

Соединение

25

Gas Valve

Gas Valve

26

Silencer 180

Silencer 180

27

Exhaust Pipe 180

Exhaust Pipe 180

28

Spring 180

Spring 180

28

Spring 125

Spring 125
