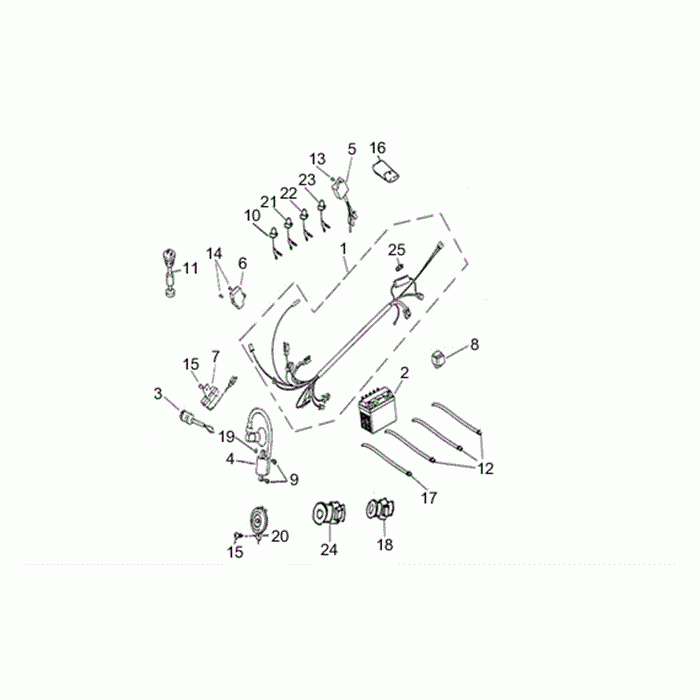

Электрическая система

Aprilia Quasar 50-100
Aprilia
#oem кодцена
1
AP8910185
Main Wiring Harness 50
1
AP8910186
Main Wiring Harness 100
2
AP8910182
АКБ Yuasa
3
AP8910193
Main Switch
4
6
AP8910184
Diod Rectifier+voltage Reg.
7
AP8910197
Resistance
8
9
AP8910430
Screw W/ Flange M6x22 Grip
10
AP8910192
Oil Reserve Indicator
11
AP8910195
Датчик Уровня
12
AP8910324
Hose Clamp L200 Grip
13
AP8910427
Screw W/ Flange M6x16
14
AP8910359
Self-tap Screw M5x10
15
AP8910426
Screw W/ Flange M6x12
16
AP8910245
Toolkit
17
AP8910328
Hose Clamp Lr-220h
18
AP8910538
Flasher Unit
19
AP8910559
Notched Washer
20
AP8910526
Сигнал
21
AP8910570
Position Pilot Light
22
AP8910569
Hight-beam Indic.
23
AP8910568
Hazzard Indicator
24
AP8910537
Flasher Unit
25
AP8910483
Предохранитель
