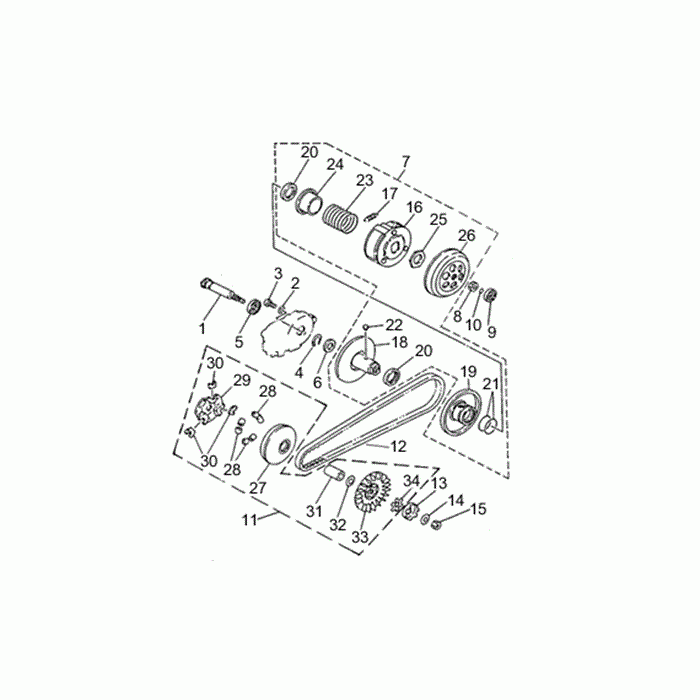

Speed variator w/ clutch

Aprilia Quasar 50-100
Aprilia
#oem кодцена
1
AP8910154
Drive Shaft 100
1
AP8910153
Primary Drive Gear 50
2
AP8910383
Plain Washer 6x19x1
3
AP8910329
Hex Socket Screw M6x10
4
AP8910419
Stop Ring S-17
5
AP8910446
Bearing 6003
6
AP8910470
Oil Seal 17x28x5.5
7
AP8910117
Centrifugal Clutch Assy 50
7
AP8910116
Centrifugal Clutch Assy 100
9
AP8910452
Bearing 638zz
10
AP8910340
O-ring 6.5x3
11
AP8910123
Variator 50
12
AP8910142
Vee-belt 100
12
AP8910141
Vee-belt 50
13
AP8910133
Toothed Start Clutch Cup 100
13
AP8910132
Toothed Start Clutch Cup 50
14
AP8910134
Spring Washer 10.2x24x2.5
15
AP8910376
Flanged Nut M10
16
AP8910137
Clutch 100
16
AP8910138
Clutch 50
17
AP8910140
Brake Shoes Return Spring 50
17
AP8910139
Brake Shoes Return Spring 100
18
AP8910143
Sec. Fixed Sheave, Complete 100
18
AP8910144
Sec. Fixed Sheave, Complete 50
19
AP8910146
Sec. Sliding Sheave, Complete 50
19
AP8910145
Sec. Sliding Sheave, Complete 100
20
AP8910476
Oil Seal 33x39x4
21
AP8910347
O-ring 36x2 100
21
AP8910348
O-ring 36x2 50
22
AP8910148
Guide Pin 50
22
AP8910147
Guide Pin 100
23
AP8910150
Sec. Sheave Spring 50
23
AP8910149
Sec. Sheave Spring 100
24
AP8910152
Variator Spring Cup 50
24
AP8910151
Variator Spring Cup 100
25
AP8910307
Nut 50
25
AP8910306
Nut 100
26
AP8910119
Clutch Housing, Complete 50
26
AP8910118
Clutch Housing, Complete 100
27
AP8910125
Pulley Assy., Driving 50
27
AP8910124
Pulley Assy., Driving 100
28
AP8910126
Pin Roller 100
28
AP8910127
Pin Roller 50
29
AP8910129
Ramp Plate 50
29
AP8910128
Ramp Plate 100
30
AP8910130
Slider 100
30
AP8910131
Slider 50
31
AP8910466
Bush 13x18x38 50
32
AP8910391
Washer 13x18x1 50
33
AP8910121
Fixed Pulley 50
33
AP8910120
Fixed Pulley 100
34
AP8910136
Front Pulley Drive Plate 100
34
AP8910135
Front Pulley Drive Plate 50
