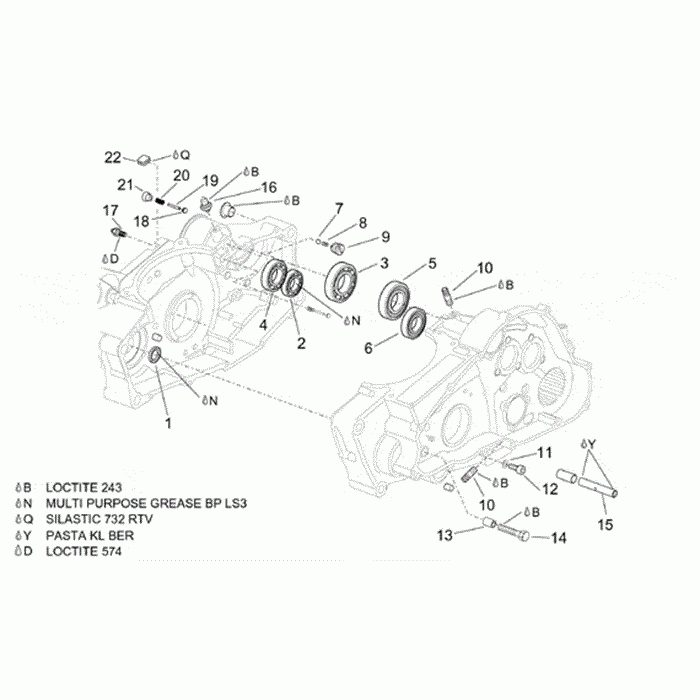

Картер 2

Aprilia Pegaso 650 IE

Картер 2

#

oem код

название

цена

1

Oil Seal 15x24x7

Oil Seal 15x24x7

2

Oil Seal 25x40x7

Oil Seal 25x40x7

3

Bearing 6305

Bearing 6305

4

Bearing 6303 E-rs1

Bearing 6303 E-rs1

5

Bearing 6205

Bearing 6205

6

Bearing 6303 Etn9

Bearing 6303 Etn9

7

Шарик

Шарик

8

Compression Spring 13, 5

Compression Spring 13, 5

9

Valve Closer Screw

Valve Closer Screw

10

Union M12x1, 5

Union M12x1, 5

11

Gasket Ring 8x13

Gasket Ring 8x13

12

Hex Socket Screw M8x16

Hex Socket Screw M8x16

13

Spacer 6, 2x10x14, 5

Spacer 6, 2x10x14, 5

14

Hex Screw M6x30

Hex Screw M6x30

15

Free Pinion Shaft

Free Pinion Shaft

16

Oil Pressure Switch M10x1

Oil Pressure Switch M10x1

17

Contact Screw M10

Contact Screw M10

Y

18

Oil Anti-return Valve

Oil Anti-return Valve

19

Valve Pin

Valve Pin

20

Пружина

Пружина

21

Valve Closer Screw

Valve Closer Screw

22

Заглушка

Заглушка
