Transmission cover (carburettor) Оригинальные запчасти для мотоциклов Aprilia SR 50 H2O (Ditech+Carb.) (2003)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

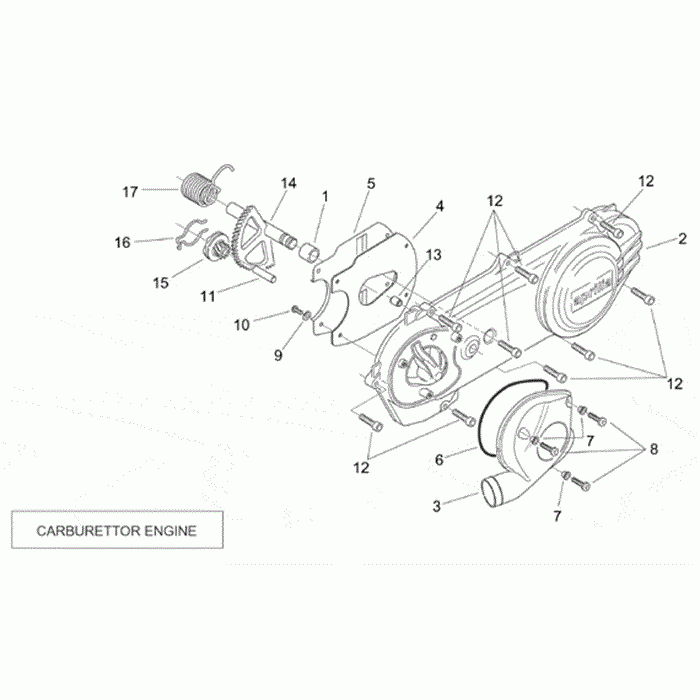

Transmission cover (carburettor)

Aprilia SR 50 H2O (Ditech+Carb.)

Transmission cover (carburettor)

#

oem код

название

цена

1

Kick-start Shaft Bush

Kick-start Shaft Bush

2

Kickstart Cover Carb

Kickstart Cover Carb

3

Aeration Cover Carb

Aeration Cover Carb

4

Acoustic Insulation Panel Carb

Acoustic Insulation Panel Carb

5

Air Duct Carb

Air Duct Carb

6

Gasket Carb

Gasket Carb

7

T Bush Carb

T Bush Carb

8

Hex Socket Screw M5x20 Carb

Hex Socket Screw M5x20 Carb

9

Шайба

Шайба

10

Hex Socket Screw M5x10 Carb

Hex Socket Screw M5x10 Carb

11

Штифт

Штифт

12

Hex Socket Screw M6x25

Hex Socket Screw M6x25

13

Pin Carb

Pin Carb

14

Вал кик-стартера

Вал кик-стартера

15

Sliding Kick-start Gear

Sliding Kick-start Gear

16

Пружина

Пружина

17

Lever Return Spring

Lever Return Spring
