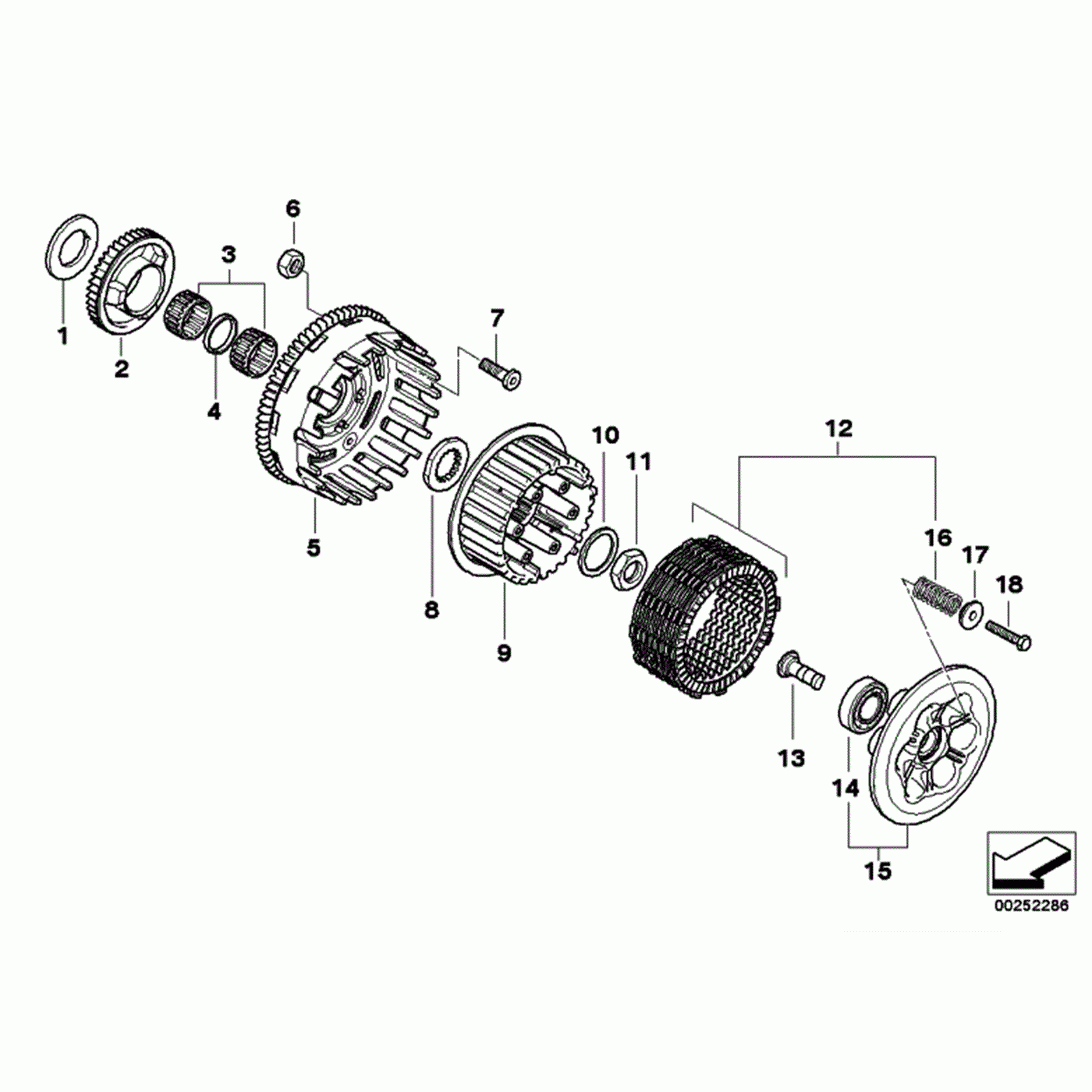

Сцепление

BMW F650GS(K72) 09+ (K72)

Сцепление

#

oem код

название

цена

01

Stop Disk - 30, 2x50x2, 5

Stop Disk - 30, 2x50x2, 5

02

Oil Pump Gearwheel - 42 Z (from 08/11)

Oil Pump Gearwheel - 42 Z (from 08/11)

03

Needle Cage - 30x35x13 B

Needle Cage - 30x35x13 B

04

Spacer Ring

Spacer Ring

05

Clutch Housing

Clutch Housing

Only Applies To

06

Hex Nut - M8

Hex Nut - M8

07

Countersunk Head Screw - M8x25

Countersunk Head Screw - M8x25

08

Interm.ring - 25x43, 6x5

Interm.ring - 25x43, 6x5

09

Driving Dog

Driving Dog

10

Wave Washer - 24, 5x40x1, 8

Wave Washer - 24, 5x40x1, 8

11

Hex Nut - M24x1, 5

Hex Nut - M24x1, 5

12

Set: Of Clutch Disks / Clutch Springs - 13mm

Set: Of Clutch Disks / Clutch Springs - 13mm

13

Release Bearing - L=44 Mm

Release Bearing - L=44 Mm

14

Grooved Ball Bearing - 20x42x8

Grooved Ball Bearing - 20x42x8

15

Суппорт

Суппорт

16

Clutch Spring - 18, 5x2, 2x63mm

Clutch Spring - 18, 5x2, 2x63mm

17

Step Plate

Step Plate

18

Fillister-head Screw - M6x45-8.8-phr

Fillister-head Screw - M6x45-8.8-phr
