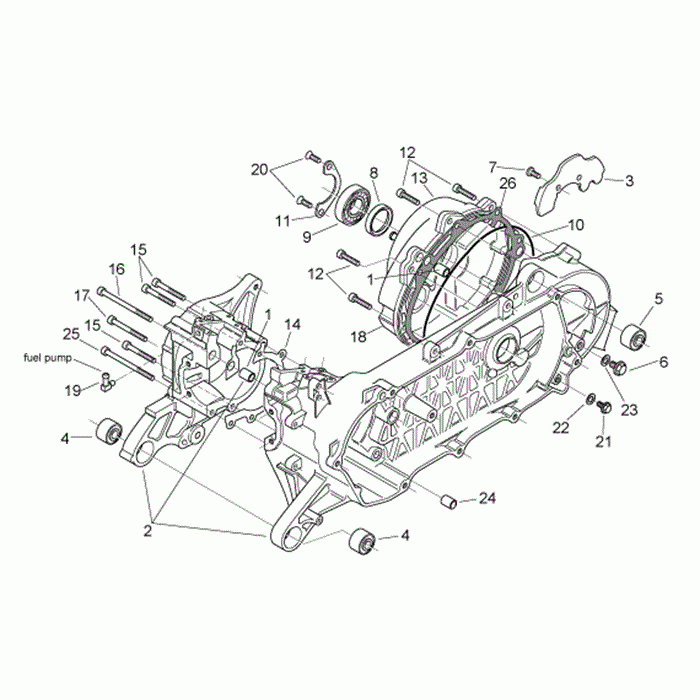

Картер

Aprilia Mojito Custom 50 2T (Aprilia Engine)
Aprilia
#oem кодцена
1
AP3FCN000038
Штифт
2
AP1BHA000104
Картер двигателя в сборе
3
AP3HAA000044
Drive Plate
4
AP3HAN000055
Silent-block
5
AP3HAN000056
Silent-block
6
AP4AUN000011
Screw W/ Flange M8x12
7
AP4ADN000013
Винт M6x12
8
AP3EBN000047
Oil Seal 29x42x6
9
AP4GAN000026
Bearing D22x50x14
10
AP3EAN000048
O-ring D2, 4x161
11
AP3HAA000068
Bearing Fixing Plate
12
AP4ADN000016
Hex Socket Screw M6x25
13
AP5RHR000189
Transmission Cover
14
AP3HVA000021
Прокладка
15
AP4ADN000008
Hex Socket Screw M6x45
16
AP4ADN000009
Hex Socket Screw M6x85
17
AP4ADN000007
Hex Socket Screw M6x55
18
AP5RHR000189
Transmission Cover
19
AP3HAA000064
Vacuum Pipe Union
20
AP4AHN000067
Screw M6x16
21
AP3AUN000062
Screw W/ Flange M6x12
22
AP4EEN000063
Aluminium Washer
23
AP4EEN000037
Aluminium Washer
24
AP3QAA000039
Втулка
25
AP4ADN000006
Hex Socket Screw M6x80
26
AP3NVA000627
Paper Gasket
