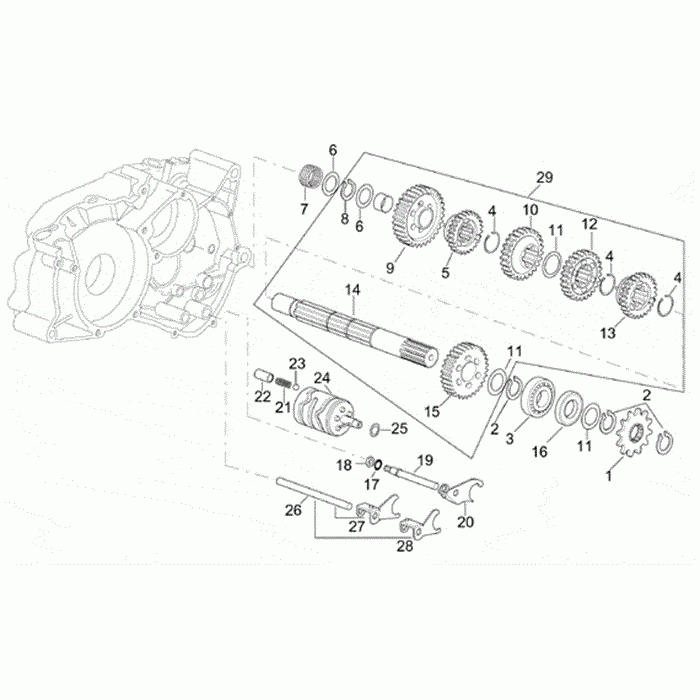

Gearbox driven shaft

Aprilia RS 50

Gearbox driven shaft

#

oem код

название

цена

1

Intermediate Gear Z=11 45km

Intermediate Gear Z=11 45km

1

Intermediate Gear Z=12 F.p.

Intermediate Gear Z=12 F.p.

1

Intermediate Gear Z=12 Pg

Intermediate Gear Z=12 Pg

1

Intermediate Gear Z=11 60km-ts

Intermediate Gear Z=11 60km-ts

2

Outside Circlip D20

Outside Circlip D20

3

Bearing D20x47x14

Bearing D20x47x14

4

Outside Circlip D20 5 G

Outside Circlip D20 5 G

5

5th Wheel Gear Z=25

5th Wheel Gear Z=25

6

Washer 14, 5x27x0, 4

Washer 14, 5x27x0, 4

7

Needle Bearing Db14-12 4 G

Needle Bearing Db14-12 4 G

8

Outside Circlip D14 5 G

Outside Circlip D14 5 G

9

1st Wheel Gear Z=36

1st Wheel Gear Z=36

10

3rd Wheel Gear Z=29

3rd Wheel Gear Z=29

11

Blue Steel Washer D20, 45x28

Blue Steel Washer D20, 45x28

11

Blue Steel Washer D20, 45x28x0, 6

Blue Steel Washer D20, 45x28x0, 6

12

4th Wheel Gear Z=27

4th Wheel Gear Z=27

13

6th Wheel Gear Z=24

6th Wheel Gear Z=24

14

Secondary Gear Shaft

Secondary Gear Shaft

15

2nd Wheel Gear Z=33

2nd Wheel Gear Z=33

16

Oil Seal W/ Dust Seal

Oil Seal W/ Dust Seal

17

Int. Notched Washer D7

Int. Notched Washer D7

18

Nut M7x5, 5

Nut M7x5, 5

19

Fork Guide Pin

Fork Guide Pin

20

Gear Selector Fork+pin 5-6 V.ta'

Gear Selector Fork+pin 5-6 V.ta'

21

Gear Indicator Spring

Gear Indicator Spring

22

Pin Retainer

Pin Retainer

23

Ball D9

Ball D9

24

Shift Cam

Shift Cam

25

Blue Steel Washer D10x16

Blue Steel Washer D10x16

26

Fork Guide Pin W/shank

Fork Guide Pin W/shank

27

Gear Selector Fork+pin 1-3 V.ta'

Gear Selector Fork+pin 1-3 V.ta'

28

Gear Selector Fork+pin 2-4 V.ta'

Gear Selector Fork+pin 2-4 V.ta'

29

Secondary Shaft Cpl. 6 V.ta'

Secondary Shaft Cpl. 6 V.ta'
