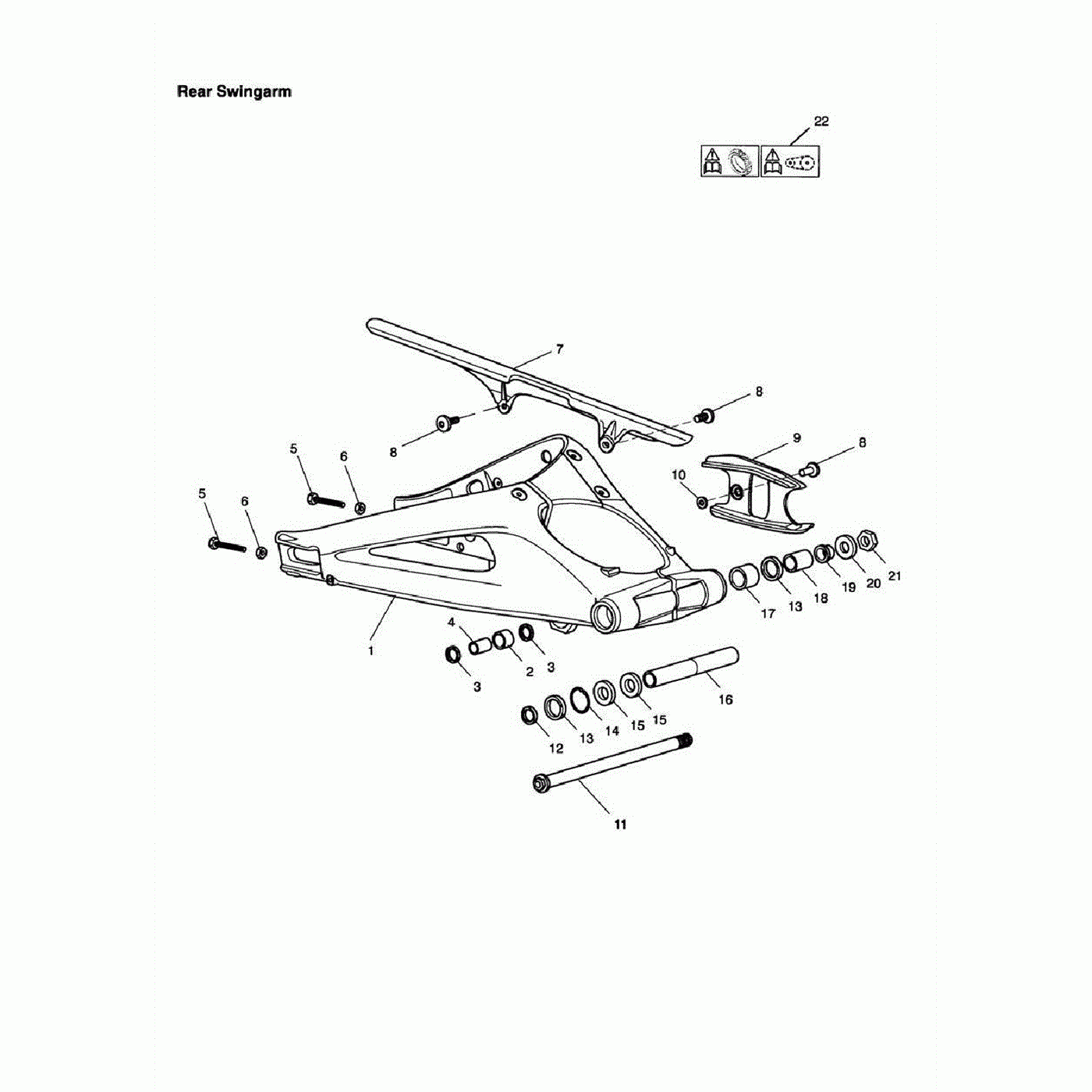

Rear swingarm

Triumph Daytona 675
Triumph
#oem кодцена
1
T2053005
Swingarm Spares Assy
2
T3800154
Brg, N/roller, Fc, 17x24x15
3
T3600066
Seal, Oil 24 X 17 X 5
4
T2053130
Sleeve, Ground, 17 10 30
5
T3330629
Screw, M8 X 1.25 55 Long
6
T3350303
Nut, M8x1.25, Slv
7
T2050400
Chain Guard
8
T3331518
Screw, But/hd, M6x1.0x20, Slv
9
T2050410
Rubbing Strip, Chain
10
T3010073
Flanged Sleeve, M6
11
T2050430
Spindle, Swingarm
12
T2054061
Втулка подшипника
13
T3600044
Seal, Oil, 32 25 4
14
T3500204
Circlip, Int, 35x1.5
15
T3800081
Bearing, Ball 17 35 10
16
T2050420
Spacer, Internal
17
T3800014
Подшипник
18
T2054062
Sleeve, Ground 25x17x37
19
T2050222
Swingarm Pivot Adjuster
20
T3551240
Washer, M16 X 34 X 3
21
T3350155
Locknut, M16, Thin
22
T3900092
Label, Chain&tyres, Reduced Size
