  6. Fuel tank/fuel pump/fittings >305059 jet blk/neon blue; >305222 roulette green; >305251 fusion white

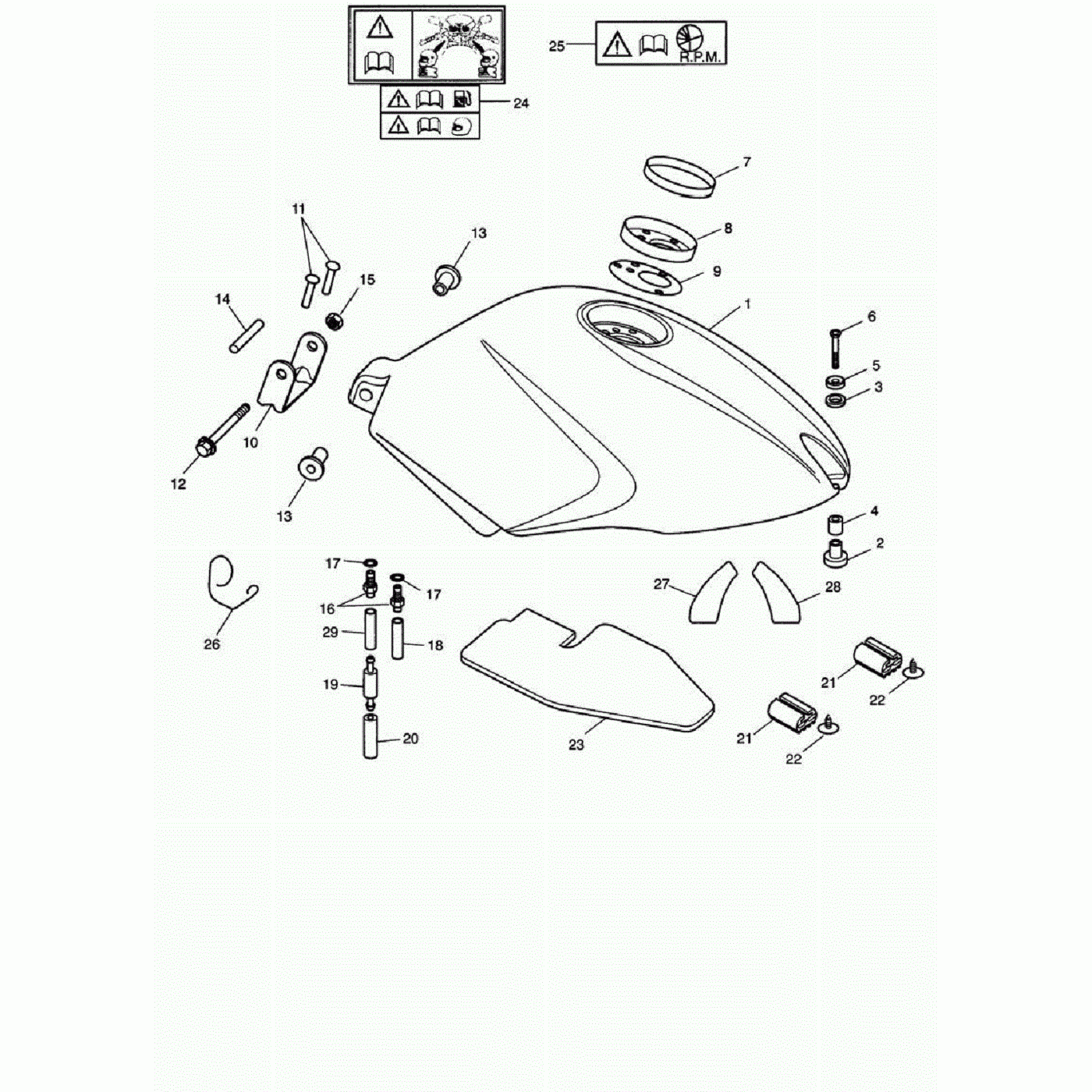

Fuel tank/fuel pump/fittings >305059 jet blk/neon blue; >305222 roulette green; >305251 fusion white

Triumph Speed Triple
Triumph
#oem кодцена
1
T2400209PG
Spares Kit, Fuel Tank, Black
1
T2400209NF
Spares Kit, Fuel Tank, White
1
T2400209JO
Spares Kit, Fuel Tank, Blue
1
T2400209HG
Spares Kit, Fuel Tank, Green
1
T2400209FG
Spares Kit, F/tank, Yellow
1
T2400209FE
Spares Kit, Fuel Tank, Yellow
2
2400042T0301
Tank Retention Rubber
3
T3550061
Washer, M6
4
T3000024
Sleeve, M6x23, Plated
5
T3550344
Washer, M6x40, Csk Skt Head
6
T3330876
Screw, C/sunk, Skt, M6x1.0x40, S/s
7
T2500464
Seal, Cap, Fuel Filler
8
T2500469
Neck, Fuel Filler
9
T2500468
Seal, Base, Fuel Filler
10
T2400599
Brkt, Fuel Tank, Rear
11
T3300100
Заклёпка
12
T3204086
Bolt, Rhhf, M6x1x105, Blk, Enc
13
T3450078
Втулка
14
T3330588
Compression Limiting Rod
15
T3350012
Locknut M6
16
2400043T0301
Штуцер
17
3550063T0301
Washer, Rubber
18
T3620221
Pipe, Fuel Tank Overflow
19
T2400074
Valve, Roll Over
19
T2401140
Kit, Roll Over Valve
20
T3620524
Hose, Formed
20
T3622503
Pipe, Fuel Tank, Overflow, 40mm
21
T3020470
Pad, Rubber, Fuel Tank
22
T3451260
Fir Tree, Black, 5.0x11.0mm
23
T2400546
Insulation, Fuel Tank
24
T3900194
Label, Fuel Tank Diag, Unfrd
25
T3900171
Label, Running In, Diagramatic
26
T3700047
Направляющая троса
27
T2402398
Decal, Clear, Fuel Tank, Rh
28
T2402399
Decal, Clear, Fuel Tank, Lh
29
T3620344
Pipe, Fuel Tank, Overflow 40mm
29
T3622503
Pipe, Fuel Tank, Overflow, 40mm
