Крышки двигателя Оригинальные запчасти для мотоциклов Triumph Speed Triple (2010)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

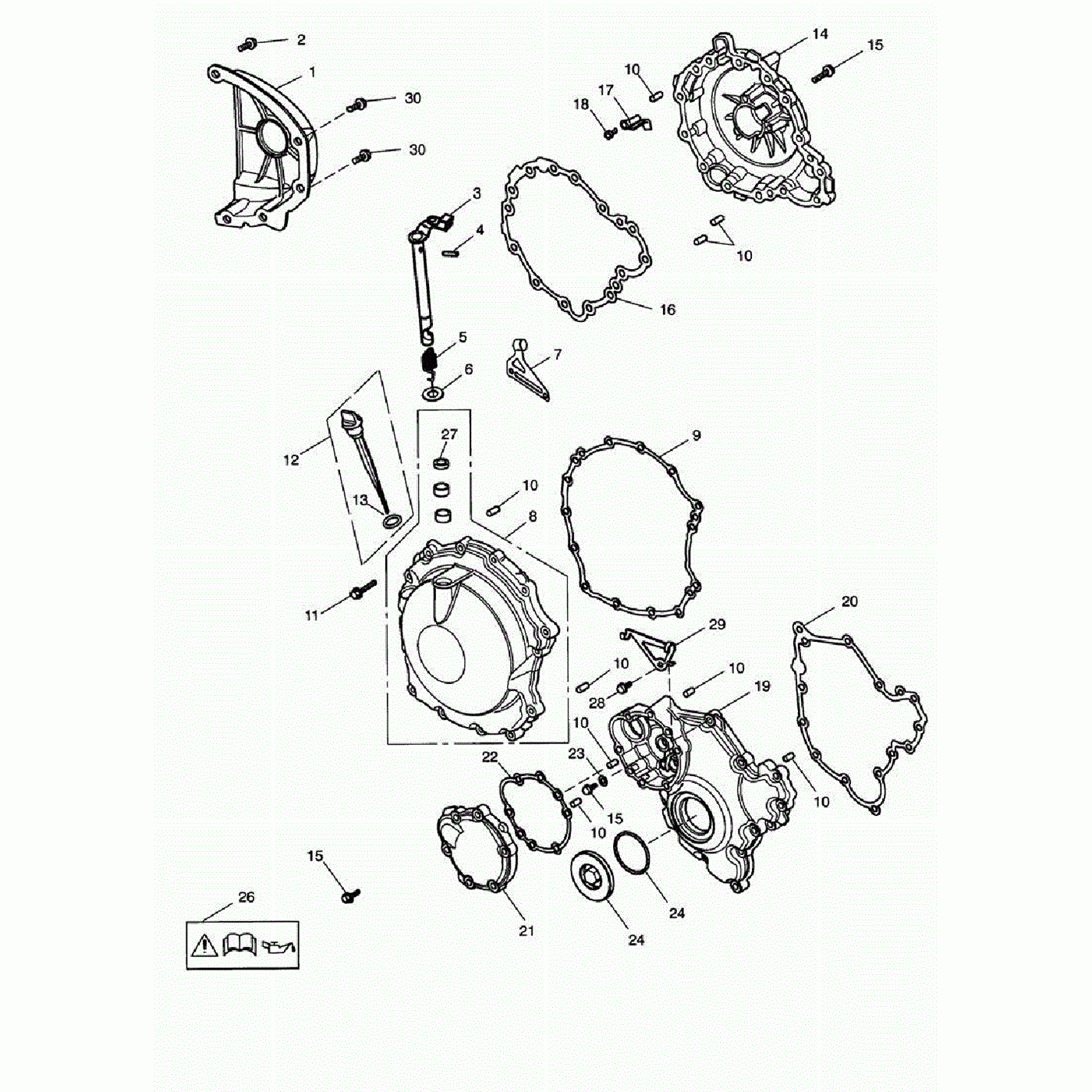

Крышки двигателя

Triumph Speed Triple

Крышки двигателя

#

oem код

название

цена

1

Cover, Sprocket

Cover, Sprocket

2

Bolt, M6 X 12, Lightened

Bolt, M6 X 12, Lightened

336376 >

3

Lifter Arm, Clutch

Lifter Arm, Clutch

4

Spirol Pin, 3 X 18 Mm

Spirol Pin, 3 X 18 Mm

5

Return Spring

Return Spring

6

Washer, Dia 18 X 13 X 1 Thick

Washer, Dia 18 X 13 X 1 Thick

7

Крепление

Крепление

8

Kit, Spares, Dipstick, Clutch Cov

Kit, Spares, Dipstick, Clutch Cov

9

Прокладка крышки сцепления

Прокладка крышки сцепления

10

Dowel 6 X 16

Dowel 6 X 16

11

Bolt, Hhf, M6 X 28, S/s

Bolt, Hhf, M6 X 28, S/s

12

Oil Filler Cap And Dipstick

Oil Filler Cap And Dipstick

13

O Ring, Oil Filter Cap

O Ring, Oil Filter Cap

14

Крышка генератора

Крышка генератора

> Eng No 356142

14

Cover, Alternator, M/c

Cover, Alternator, M/c

Eng No 356143 >

15

Bolt, Hhf, M6 X 25, S/s

Bolt, Hhf, M6 X 25, S/s

Eng No 322083 >

16

Gasket, Alternator Cover

Gasket, Alternator Cover

Eng No 403404 >

16

Gasket, Metal, Alternator

Gasket, Metal, Alternator

Eng No 356143 > Eng No 403403

17

Plate, Wire Retainer

Plate, Wire Retainer

18

Screw, Cap/hd, M5x0.8x10, Slv, Enc

Screw, Cap/hd, M5x0.8x10, Slv, Enc

19

Cover, Crank, Black

Cover, Crank, Black

Eng No 322083 >

19

Cover, Crank, Spares Kit

Cover, Crank, Spares Kit

> Eng No 322082

20

Gasket, Crank Cover

Gasket, Crank Cover

21

Крышка

Крышка

22

Gasket, Starter Cover

Gasket, Starter Cover

23

Washer, 6.0x13.5x1.0, Aluminium

Washer, 6.0x13.5x1.0, Aluminium

24

Plug, M45 X 1.5, Black

Plug, M45 X 1.5, Black

25

'o'ring, 48idx3.5

'o'ring, 48idx3.5

26

Label, Oil+filter, Reduced Size

Label, Oil+filter, Reduced Size

27

Dust Seal, 12x18x4.5

Dust Seal, 12x18x4.5

28

Bolt, Hhf, M6x28x1, S/s, Enc

Bolt, Hhf, M6x28x1, S/s, Enc

Eng No 322083 >

29

Clip, Cable Guide

Clip, Cable Guide

30

Screw, Tx, Pan/hd, M6x1.0x16, Slv

Screw, Tx, Pan/hd, M6x1.0x16, Slv

336376 >
