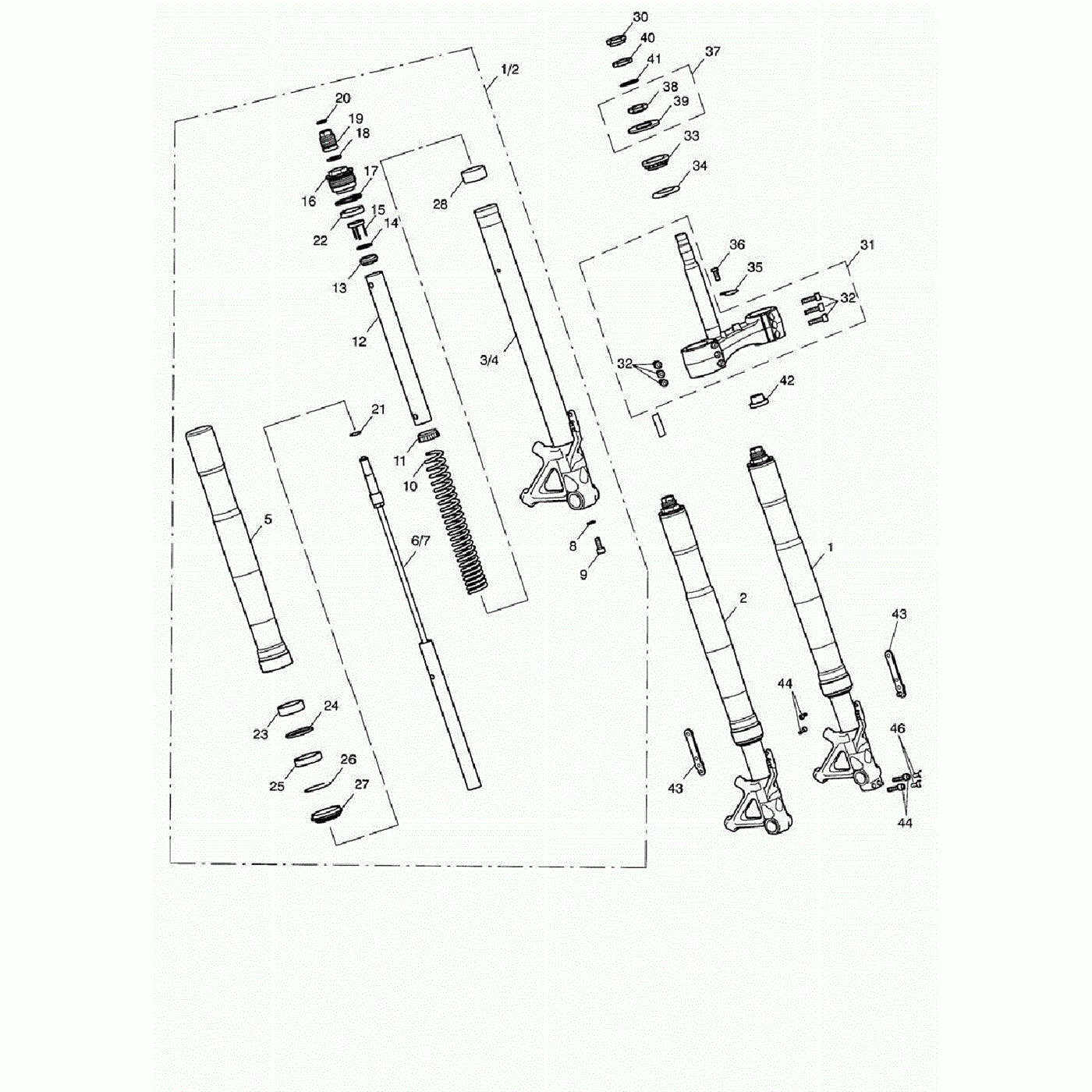

Front forks and yokes

Triumph Speed Triple

Front forks and yokes

#

oem код

название

цена

1

Stanchion Assy, Lh

Stanchion Assy, Lh

> 267725

1

Stanchion Assy, Lh

Stanchion Assy, Lh

419556 >

1

Stanchion Assy, Lh

Stanchion Assy, Lh

333179 > 419555

1

Stanchion Assy, Lh

Stanchion Assy, Lh

267726 > 333178

2

Stanchion Assy, Rh

Stanchion Assy, Rh

267726 > 333178

2

Stanchion Assy, Rh

Stanchion Assy, Rh

333179 > 419555

2

Stanchion Assy, Rhs

Stanchion Assy, Rhs

419556 >

2

Stanchion Assy, Rh

Stanchion Assy, Rh

> 267725

3

Tube, Inner, Lh

Tube, Inner, Lh

> 333178

3

L Slide Pipe Comp

L Slide Pipe Comp

423185 >

3

Tube, Inner, Lh

Tube, Inner, Lh

333179 > 423184

4

Tube, Inner, Rh

Tube, Inner, Rh

333179 > 423184

4

R Slide Pipe Comp

R Slide Pipe Comp

423185 >

4

Tube, Inner, Rh

Tube, Inner, Rh

> 333178

5

Труба, Наружная

Труба, Наружная

> 333178

5

Outer Tube

Outer Tube

423185 >

5

Tube, Outer, Fork, Black

Tube, Outer, Fork, Black

333179 > 423184

6

L Damper Comp

L Damper Comp

423185 >

6

Damper Comp, Lh

Damper Comp, Lh

> 423184

7

Damper Comp, Rh

Damper Comp, Rh

> 423184

7

R Damper Comp

R Damper Comp

423185 >

8

Sealing Washer

Sealing Washer

9

Capscrew, Oil Lock

Capscrew, Oil Lock

10

Пружина

Пружина

> 267725

10

Пружина

Пружина

267726 >

11

Пружины

Пружины

12

Tube, Spring

Tube, Spring

13

Направляющая

Направляющая

14

Шайба

Шайба

15

Spring Adj Plate, Comp

Spring Adj Plate, Comp

16

Top Cap

Top Cap

17

O-ring, Top Cap

O-ring, Top Cap

18

0-ring, Spr Adj, Outer

0-ring, Spr Adj, Outer

19

Spring Adjuster

Spring Adjuster

20

O-ring, Spr Adj, Inner

O-ring, Spr Adj, Inner

21

Ring Clip

Ring Clip

22

Seat, Rubber

Seat, Rubber

23

Bearing, Outer Tube

Bearing, Outer Tube

> 423184

23

Guide Bush

Guide Bush

423185 >

24

Шайба

Шайба

25

Сальник

Сальник

26

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

28

Slide Bush

Slide Bush

423185 >

28

Bearing, Inner Tube

Bearing, Inner Tube

> 423184

29

Wheel Pinch Bolt, S6 Fork

Wheel Pinch Bolt, S6 Fork

30

Top Nut, Yoke

Top Nut, Yoke

31

Lower Yoke Assy, P/coat

Lower Yoke Assy, P/coat

32

Bolt, Skt.cap, M8x30x1.25, 10.9

Bolt, Skt.cap, M8x30x1.25, 10.9

33

Bearing, Sac 30 55 17

Bearing, Sac 30 55 17

34

Seal, Dust, Dia 55

Seal, Dust, Dia 55

35

Guide, Wire, Brake Hose

Guide, Wire, Brake Hose

36

Bolt, M6 X 12, Lightened

Bolt, M6 X 12, Lightened

37

Cover Headstock Assy Spares

Cover Headstock Assy Spares

38

Adj Nut, Lower

Adj Nut, Lower

39

Cover, Headstock Bearing

Cover, Headstock Bearing

40

Adj Lock Nut

Adj Lock Nut

41

Washer, Locating, 25.5x38x2, Slv

Washer, Locating, 25.5x38x2, Slv

42

Moss Plug, 23.4-26.4mm Dia

Moss Plug, 23.4-26.4mm Dia

43

Bracket, Mudguard

Bracket, Mudguard

44

Screw, Pan/hd, Tx, M6x1.0x12, Enc

Screw, Pan/hd, Tx, M6x1.0x12, Enc

45

Reflector, Amber, Adhesive

Reflector, Amber, Adhesive

Us, Tw, Ca & Ar

46

Plug, Chrome

Plug, Chrome
