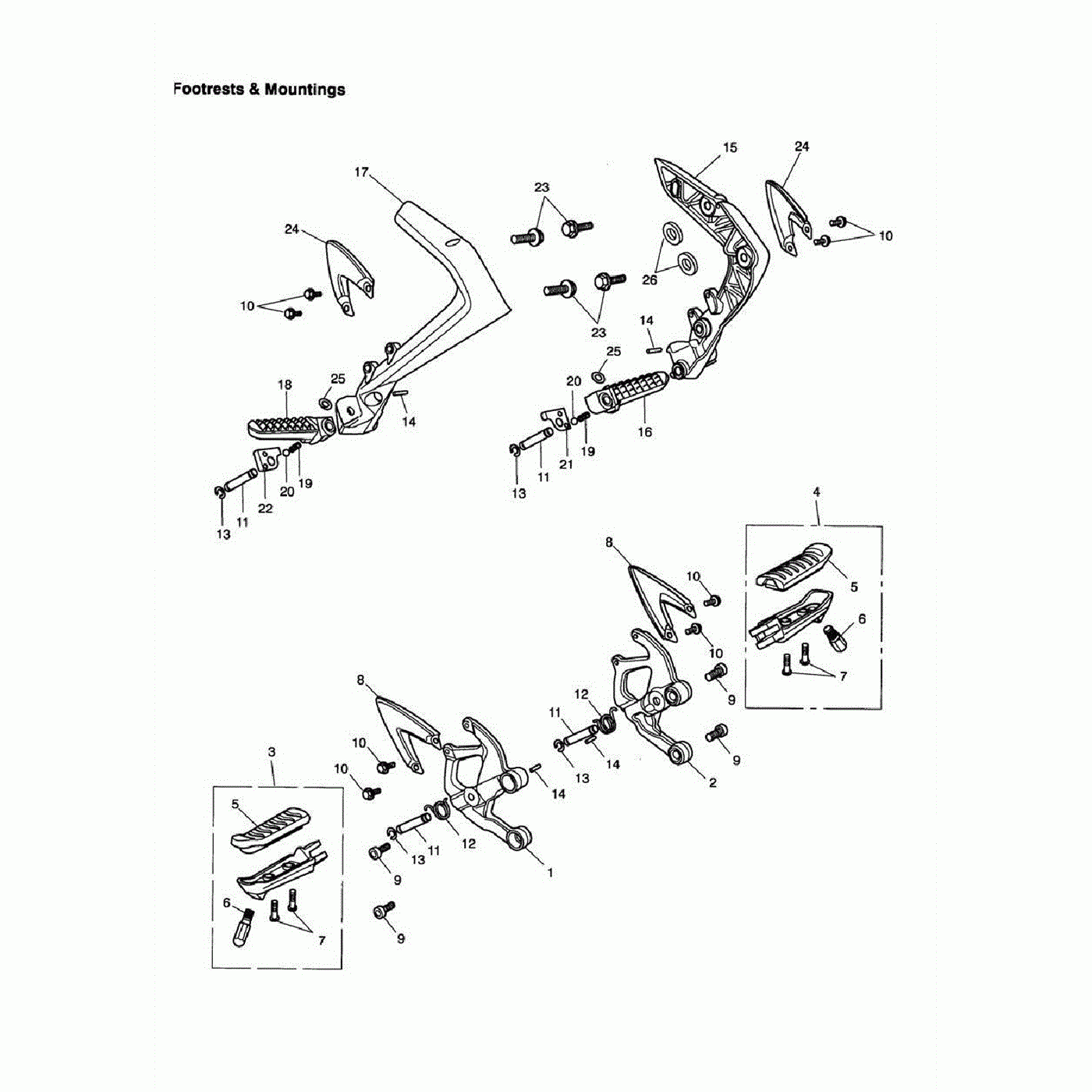

Footrests & mountings

Triumph Sprint ST
Triumph
#oem кодцена
1
T2081603
Control Plate, Rh
2
T2081650
Control Plate, Lh
3
T2081120
Footrest Assy, Rh, Front
4
T2081220
Footrest Assy, Lh, Front
5
T2081125
Rubber, Footrest
7
T3330173
Screw, Torx, Pan Hd, M5x0.8x16
8
T2081605
Heel Guard, Front, Pressed
9
T3050142
Screw, Cap/hd, M8x1.25x20, Ss
10
T3203011
Bolt, Rhhf, M6x1x10, S/s
11
T2081610
Pin, Pivot, Dia8.0
12
T2081130
Spring, Footrest Return
14
T3000095
Pin, Spirol, Dia 3 X 14
15
T2081620
Footrest Hanger, Lh, Finished
16
T2081622
Footrest, Rear, Hpdc, Lh
17
T2081625
Footrest Hanger, Rh, Finished
18
T2081627
Footrest, Rear, Hpdc, Rh
19
T2081674
Spring, Detent, 6.2 X 14
20
T2081675
Ball, Detent, Dia 6.3
21
T2081623
Detent Plate, Lh
22
T2081628
Detent Plate, Rh
23
T3205653
Bolt, Rhhf, M8x1.25x30, Slv
24
T2081655
Heel Guard, Rear, Pressed
25
T3550260
Washer M8
26
T2081629
Spacer, Dia 17 X 8.4 X 5.0
