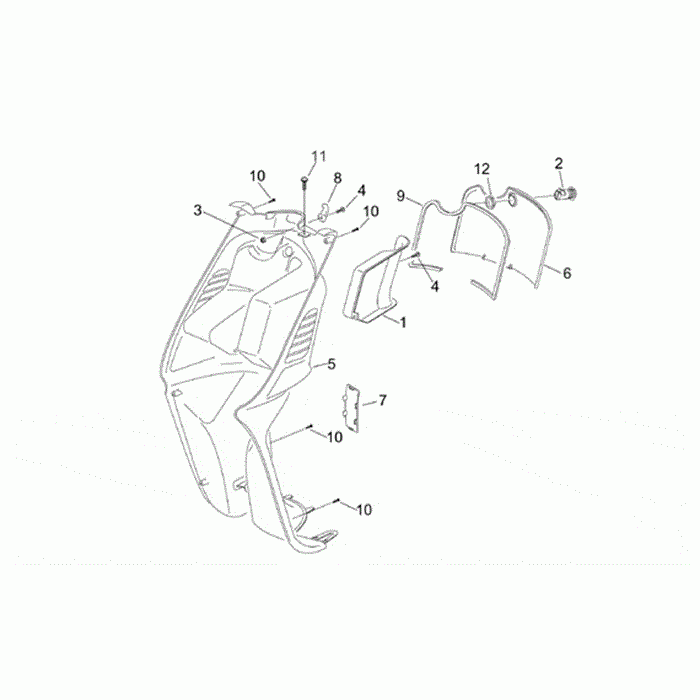

Front body - internal shield

Aprilia Sonic 50 H2O
Aprilia
#oem кодцена
1
AP8248036
Headlight Access Door, Azure
1
AP8248926
Headlight Access Door, Grey
1
AP8248899
Headlight Access Door, Black
1
AP8239999
Headlight Access Door, Grey
1
AP8239740
Headlight Access Door, Violet
2
AP8201734
Front Box Lock
3
AP8150451
Low Self-locking Nut M5*
4
AP8152298
Screw W/ Flange M5x16*
5
AP8248896
Internal Shield, Met.black
5
AP8239997
Internal Shield, T. Grey
5
AP8239290
Internal Shield, Violet
5
AP8248034
Internal Shield, Met. Azure
5
AP8248924
Internal Shield, Grey
6
AP8248035
Glove Comp.door, Azure
6
AP8248925
Glove Comp.door, Grey
6
AP8248898
Glove Comp.door, Black
6
AP8239998
Glove Comp.door, Grey
6
AP8239291
Glove Comp.door, Violet
7
AP8248037
Type Appr.data Cover, Cyan
7
AP8248927
Type Appr.data Cover, Grey
7
AP8248900
Type Appr.data Cover, Met.bl.
7
AP8248001
Type Appr.data Cover, Grey
8
AP8239306
Bag Holder Hook
9
AP8220531
Top Box Weatherseal
10
AP8150413
Inox Self Tapping Screw 3, 9x14
11
AP8152298
Screw W/ Flange M5x16*
12
AP8102523
Lock Nut M22x1, 5
