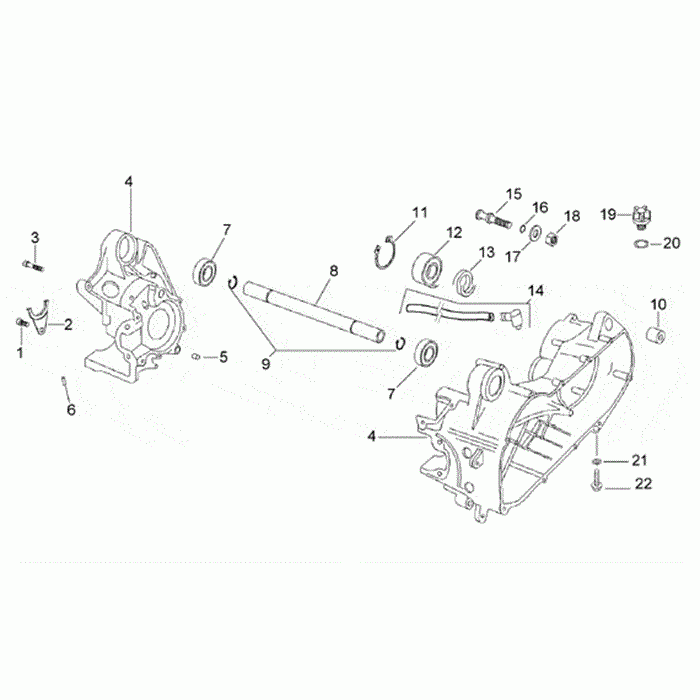

Central crank-case set

Aprilia Rally 50 Air

Central crank-case set

#

oem код

название

цена

1

Винт M6x12

Винт M6x12

2

Oil Seal Retainer Plate

Oil Seal Retainer Plate

3

Screw M6x35

Screw M6x35

4

Crankcase Assy 25-e2

Crankcase Assy 25-e2

4

Crankcase Assy 45-e2

Crankcase Assy 45-e2

5

Crankcase Pin D12x16

Crankcase Pin D12x16

6

Roller D3x11, 8

Roller D3x11, 8

7

Sealed Bearing D17x35x10

Sealed Bearing D17x35x10

8

Spacer D12x17x227

Spacer D12x17x227

9

Outside Circlip D17

Outside Circlip D17

10

Silent-block, Crankcase

Silent-block, Crankcase

11

Inside Circlip D40

Inside Circlip D40

12

Bearing D17x40x12

Bearing D17x40x12

13

Сальник

Сальник

14

Union+breather Pipe 10x14x210

Union+breather Pipe 10x14x210

15

Brake Shoe Pin

Brake Shoe Pin

16

O-ring D6, 8x2

O-ring D6, 8x2

17

Spring Washer D10x21x2

Spring Washer D10x21x2

18

Nut M10x1, 25

Nut M10x1, 25

19

Oil Filler Plug

Oil Filler Plug

20

O-ring D13, 3x2, 4

O-ring D13, 3x2, 4

21

Gasket 8, 2x15x1, 2

Gasket 8, 2x15x1, 2

22

Screw W/ Flange M8x15

Screw W/ Flange M8x15
