Рама Оригинальные запчасти для мотоциклов Aprilia Rally 50 Air (1996)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

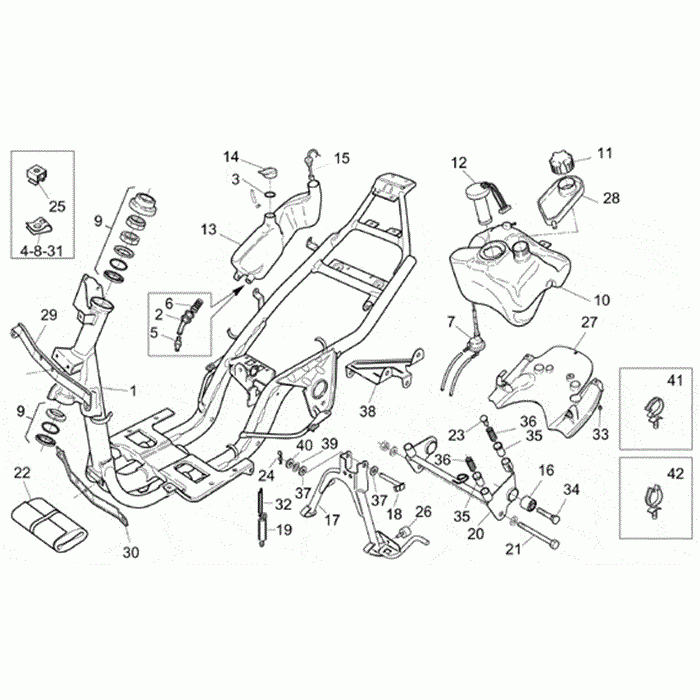

Рама

Aprilia Rally 50 Air

Рама

#

oem код

название

цена

1

Frame With Electro-coating

Frame With Electro-coating

2

Резинка

Резинка

3

Сальник

Сальник

4

Clip M6*

Clip M6*

5

2-way Union

2-way Union

6

Mixer Oil Filter

Mixer Oil Filter

7

Vacuum Fuel Tap

Vacuum Fuel Tap

8

Clip M5*

Clip M5*

9

Ball Ring Set, Complete

Ball Ring Set, Complete

10

Fuel Tank E2

Fuel Tank E2

3-4

10

White Ring Nut Fuel Tank Noe2

White Ring Nut Fuel Tank Noe2

X-y

11

Fuel Filler Cap

Fuel Filler Cap

12

Датчик Уровня Топлива

Датчик Уровня Топлива

13

Масляный Бак

Масляный Бак

14

Oil Filler Cap

Oil Filler Cap

15

Oil Reserve Indicator

Oil Reserve Indicator

16

Silent-block, Connecting Rod

Silent-block, Connecting Rod

17

Central Stand

Central Stand

3-4-x-y

17

Central Stand

Central Stand

S-t-v-w

18

Stand Pin With Washer

Stand Pin With Washer

19

Lateral Stand Spring

Lateral Stand Spring

20

Engine Connecting Element

Engine Connecting Element

21

Engine Pivot Pin

Engine Pivot Pin

22

Toolkit

Toolkit

23

Заглушка

Заглушка

24

Split Pin *

Split Pin *

25

Captive Nut M6

Captive Nut M6

26

Stand End Stop

Stand End Stop

26

Резинка

Резинка

27

Fuel Cock Protection

Fuel Cock Protection

28

Fuel Glass Cup

Fuel Glass Cup

29

Front Shield Support

Front Shield Support

30

Floor Panel Front Support

Floor Panel Front Support

31

Screw Clip D5, 5* Std

Screw Clip D5, 5* Std

32

Пружина

Пружина

33

Втулка

Втулка

34

Connecting Rod Pin

Connecting Rod Pin

35

Rubber Cup

Rubber Cup

36

Connecting Rod Spring

Connecting Rod Spring

37

Резинка

Резинка

38

Rear Mudguard Supp.

Rear Mudguard Supp.

39

Пружина

Пружина

40

Washer 10, 5x21x2*

Washer 10, 5x21x2*

41

Fairlead D10, 6

Fairlead D10, 6

42

Fairlead D18

Fairlead D18
