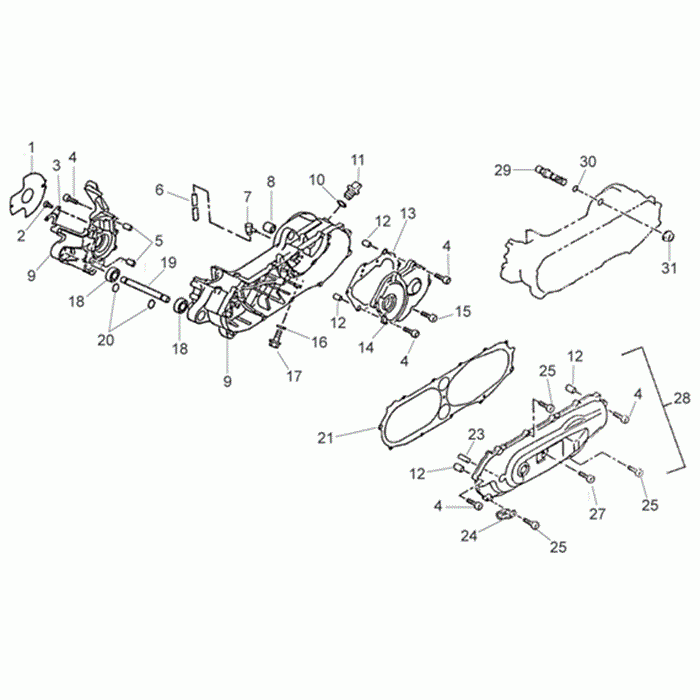

Crankcase covers

Aprilia SR 50 AIR (Vertical Cylinder)

Crankcase covers

#

oem код

название

цена

1

Flyw. Stator Gasket

Flyw. Stator Gasket

2

Винт M6x12

Винт M6x12

3

Oil Seal Retainer Plate

Oil Seal Retainer Plate

4

Screw M6x35

Screw M6x35

5

Crankcase Pin D12x16

Crankcase Pin D12x16

6

Union+breather Pipe 10x14x210

Union+breather Pipe 10x14x210

7

Union+breather Pipe 10x14x210

Union+breather Pipe 10x14x210

8

Silent-block, Crankcase

Silent-block, Crankcase

10

O-ring D13, 3x2, 4

O-ring D13, 3x2, 4

11

Oil Filler Plug

Oil Filler Plug

12

Pin Cover D10x14

Pin Cover D10x14

13

Cover Gasket

Cover Gasket

14

Transmission Cover

Transmission Cover

15

Screw M6x20

Screw M6x20

16

Oil Plug Seal

Oil Plug Seal

17

Screw W/ Flange M8x15

Screw W/ Flange M8x15

18

Bearing D15x32x8

Bearing D15x32x8

19

Spacer D10x15x176

Spacer D10x15x176

20

Outside Circlip D15

Outside Circlip D15

23

Pin D8x32

Pin D8x32

24

Cable-guide

Cable-guide

25

Screw M6x25

Screw M6x25

27

Screw M6x45

Screw M6x45

28

Крышка Зажигания

Крышка Зажигания

29

Brake Shoe Pin

Brake Shoe Pin

30

Уплотнительное кольцо

Уплотнительное кольцо

31

Nut M10x1, 25

Nut M10x1, 25
