Корпус дроссельной заслонки Оригинальные запчасти для мотоциклов BMW F800GS (K72) (2008)

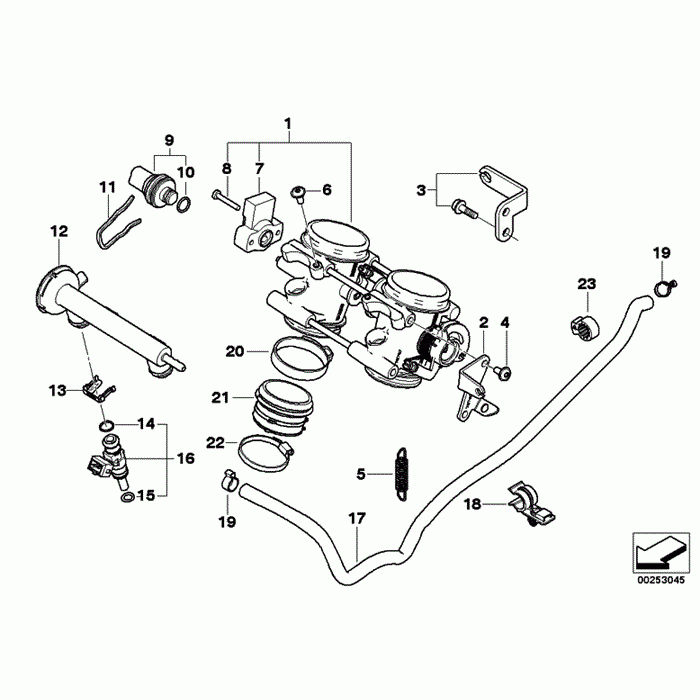

Корпус дроссельной заслонки

BMW F800GS (K72)

oem код

название

цена

13547728355

Throttle Housing Assy

Only Applies To

13547716113

Bracket For Accelerator Bowden Cable

13547722134

Bracket For Accelerator Bowden Cable

13547655405

Torx Bolt - M5x14

Use Loctite 243 Moderate-strength Thread Lock To Secure.

07129903323

Torx Bolt - M5x12

13547696412

Throttle Valve Switch - 4 Kohm

13547701545

Isa Screw With Washer - M4x25

13537694579

Fuel Pressure Sensor

13537688284

O-ring Pressure Sensor - 9, 25x1, 7

Clamping Spring

Injection Rail

Пружинный Зажим

O-ring - 7, 52x3, 51

O-ring - 8, 3x3

Injection Valve - Ev14

Installed Only On Secondary Injection Line

13547709426

Hose Running Meter - 6x11 (meter)

Length 550 Mm

13547711470

Cable Holder - D=11, 5

11731277848

Hose Clamp - 11, 1-13, 1

13721338650

Hose Clamp - D=58mm

11117720771

Резиновый патрубок

32131092152

Хомут крепления шланга- D=59mm

61137838241

Toothed Ring

13547728355

Throttle Housing Assy

Only Applies To

13547655405

Torx Bolt - M5x14

Use Loctite 243 Moderate-strength Thread Lock To Secure.

13547702370

Throttle Housing Assy

32737716115

Accelerator Cable

Only In Conjunction With

32737726554

Accelerator Cable

Only Applies To

13547722134

Bracket For Accelerator Bowden Cable
