Передняя рама Оригинальные запчасти для мотоциклов BMW G650 Xmoto (K15) (2007)

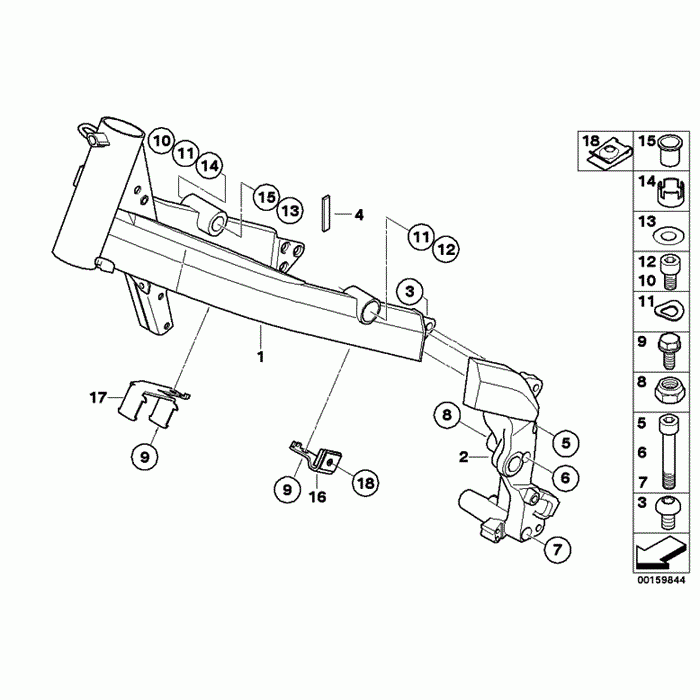

Передняя рама

BMW G650 Xmoto (K15)

oem код

название

цена

46517708668

Main Frame

For Vehicles With Graphitan 2 Metallic (code: M463) Or Graphitan 2 Metallic, Matt (code: M986)

46517696660

Frame Side Section, Right

46517696661

Frame Side Section, Left

Only Applies To

46517696662

Screw - M8

46632328779

Sealing Strip - Lg.50mm

Only Applies To

46517696914

Fillister-head Screw - M12x140

46517697021

Fillister-head Screw - M10x190

46517696915

Fillister-head Screw - M10x180

11117707913

Flange Nut - M10

46517697048

Hexagon Screw With Flange - M5x16

46517707962

Fillister-head Screw - M10x55

46537707919

Wave Washer - 10, 5x18x0, 8

46517707967

Fillister-head Screw - M10x40

46517652153

Reinforcement - 12x31mm

46517708676

Spacer Bush

46517708677

Гильца

46517696616

Bracket For Side Trim Panel

46517697012

Diagnosis Plug Bracket

46637697005

Bracket, Lateral Trim Panel, Right

46517707916

C-clip Nut - M5

46512331814

Protection Foil - 25x160mm

Only Applies To

46517706737

Support Shackle
