Клапана

BMW R1100R (259R)

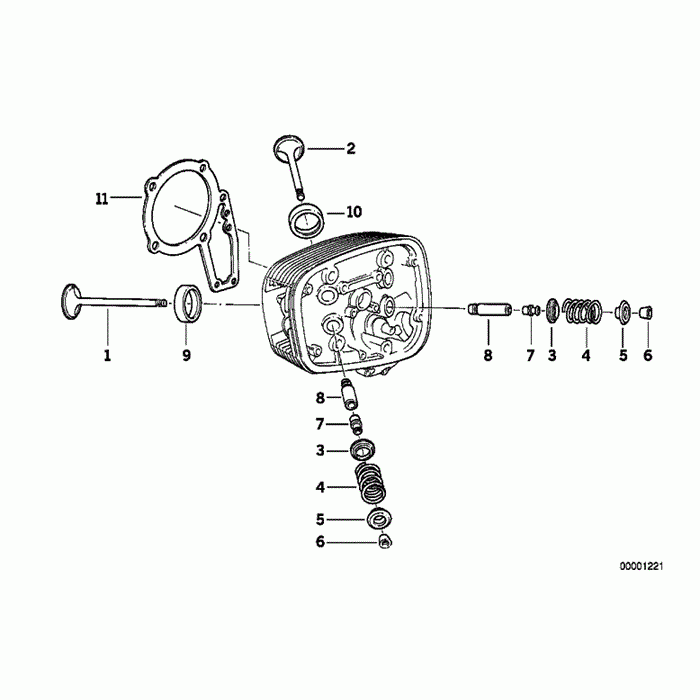

Клапана

#

oem код

название

цена

01

Intake Valve - D=34/5

Intake Valve - D=34/5

01

Intake Valve - D=36/6 (to 10/95)

Intake Valve - D=36/6 (to 10/95)

02

Exhaust Valve - D=31/6 (to 10/95)

Exhaust Valve - D=31/6 (to 10/95)

02

Exhaust Valve - D=29/5

Exhaust Valve - D=29/5

03

Spring Pocket

Spring Pocket

04

Пружина клапана

Пружина клапана

05

Upper Spring Plate - D=5

Upper Spring Plate - D=5

05

Upper Spring Plate - D=6 (to 10/95)

Upper Spring Plate - D=6 (to 10/95)

06

Valve Collet - D=6

Valve Collet - D=6

06

Valve Collet - D=5

Valve Collet - D=5

07

Valve Seal Ring - D=5

Valve Seal Ring - D=5

07

Valve Seal Ring

Valve Seal Ring

08

Valve Guide Inlet - D=12, 55/d=6mm (to 10/95)

Valve Guide Inlet - D=12, 55/d=6mm (to 10/95)

08

Valve Guide Exhaust - D=12, 55/d=6mm (to 10/95)

Valve Guide Exhaust - D=12, 55/d=6mm (to 10/95)

08

Valve Guide Inlet - D=12, 7/d=6mm (to 10/95)

Valve Guide Inlet - D=12, 7/d=6mm (to 10/95)

08

Valve Guide Inlet - D=12, 7/d=5mm

Valve Guide Inlet - D=12, 7/d=5mm

08

Valve Guide Exhaust - D=12, 7/d=5mm

Valve Guide Exhaust - D=12, 7/d=5mm

09

Valve Seat Ring Intake

Valve Seat Ring Intake

09

Valve Seat Ring Intake (to 10/95)

Valve Seat Ring Intake (to 10/95)

10

Valve Seat Ring Exhaust (to 10/95)

Valve Seat Ring Exhaust (to 10/95)

10

Valve Seat Ring Exhaust

Valve Seat Ring Exhaust

11

Cyl. Head Gasket, 4 Components (to 08/97)

Cyl. Head Gasket, 4 Components (to 08/97)

11

Cyl. Head Gasket, 3 Components (from 08/97)

Cyl. Head Gasket, 3 Components (from 08/97)
