Кронштейны крепления /задние подножки Оригинальные запчасти для мотоциклов BMW R1100RS (259S) (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

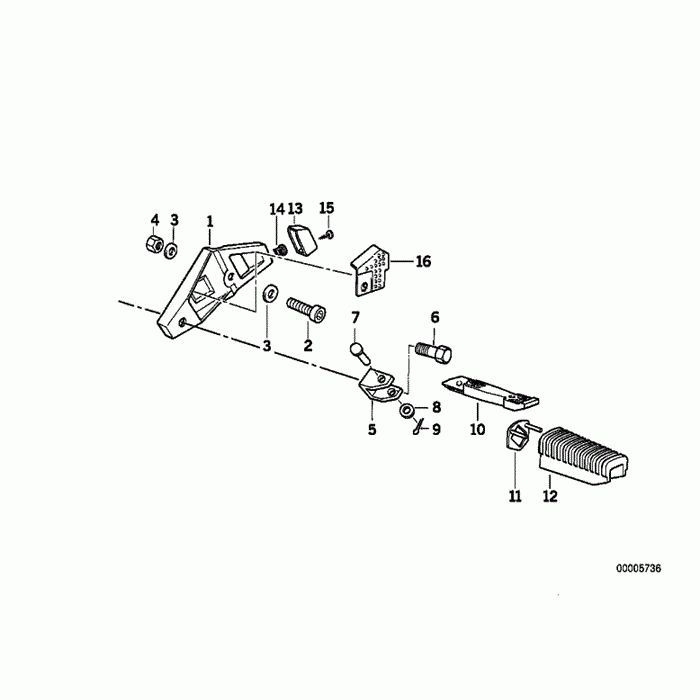

Кронштейны крепления /задние подножки

BMW R1100RS (259S)

Кронштейны крепления /задние подножки

#

oem код

название

цена

01

Footrest Plate, Left

Footrest Plate, Left

01

Footpeg Plate Right

Footpeg Plate Right

02

Fillister-head Screw - M8x16

Fillister-head Screw - M8x16

Only For Right Side

03

Washer - 8-200

Washer - 8-200

04

Self-locking Hex Nut - M8

Self-locking Hex Nut - M8

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

05

Supporting Bracket - Black (to 08/92)

Supporting Bracket - Black (to 08/92)

06

Fillister-head Screw - M10x16

Fillister-head Screw - M10x16

07

Pin - D=8mm/l=36mm

Pin - D=8mm/l=36mm

Fg* R65/20 Kw 643 11 35/ R65/35 Kw 6 11 80 22/ R65 Rt Behrde 646 07 42/ R80 644 62 35/ R80 Rt 647 64 23 4 23/r65 Usa 35 Kw 612 85 16/ R80 Usa 648 11 18/r80 Rt Usa 649 14 51

08

Washer - 8-200

Washer - 8-200

09

Split Pin - 2x16

Split Pin - 2x16

10

Footrest, Rear Left

Footrest, Rear Left

10

Footrest, Rear Right

Footrest, Rear Right

Only Applies To

11

Thrust Washer, Left

Thrust Washer, Left

11

Thrust Washer, Right

Thrust Washer, Right

12

Footrest Rubber

Footrest Rubber

13

Крышка

Крышка

14

Expanding Nut

Expanding Nut

15

Screw - M4x12

Screw - M4x12

15

Fillister Head Self-tapping Screw - St4, 8x13

Fillister Head Self-tapping Screw - St4, 8x13

For Flasher

16

Left Insert

Left Insert

16

Right Insert

Right Insert
