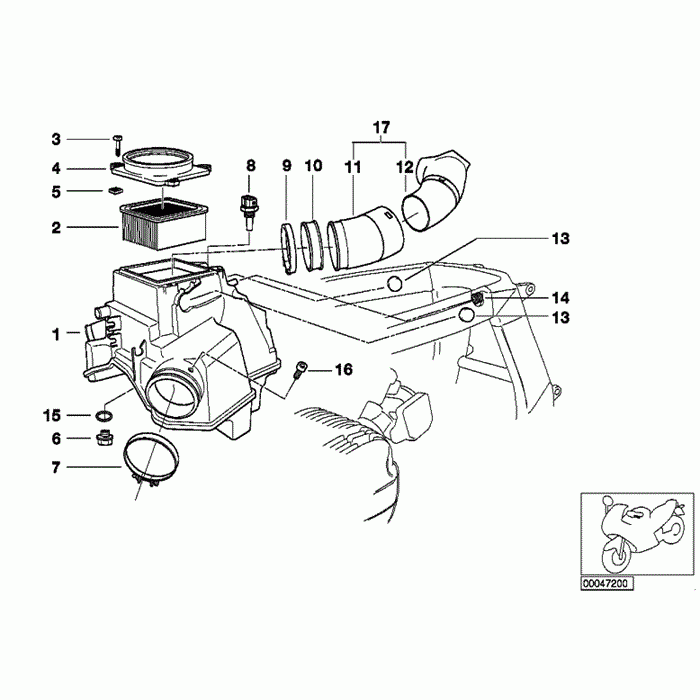

Suction silencer/filter cartridge

BMW R1100S (259S)
BMW
#oem кодцена
01
13717650973
Intake Muffler (to 05/99)
02
13717650976
Air Filter Element (to 05/99)
03
13711341111
Screw (to 05/99)
04
13717650974
Cover (to 05/99)
05
13711341127
Square Nut (to 05/99)
06
13711341110
Screw Plug - D=14mm (to 05/99)
06
13717651264
Screw Plug - D=19mm (to 05/99)
07
13721338650
Hose Clamp - D=58mm
08
13621465108
Temperature Sensor Air
09
13721460505
Hose Clamp - D=72
10
13711341128
Compression Collar (to 05/99)
12
13711342990
Air Intake Tube (to 05/99)
13
13711342488
Bump Stop (to 05/99)
14
46631451277
Уплотнитель резиновый
15
07119906354
O-ring (to 05/99)
16
07129903266
Screw - Ns-ts5x16-znfe
17
13711342990
Air Intake Tube (to 05/99)
--
07119906354
O-ring (to 05/99)
--
13717651264
Screw Plug - D=19mm (to 05/99)
06
13717651495
Cap (from 05/99)
11
13711342990
Air Intake Tube (to 05/99)
12
13717652128
Pipe Clamp (from 05/99)
15
07129903266
Screw - Ns-ts5x16-znfe
