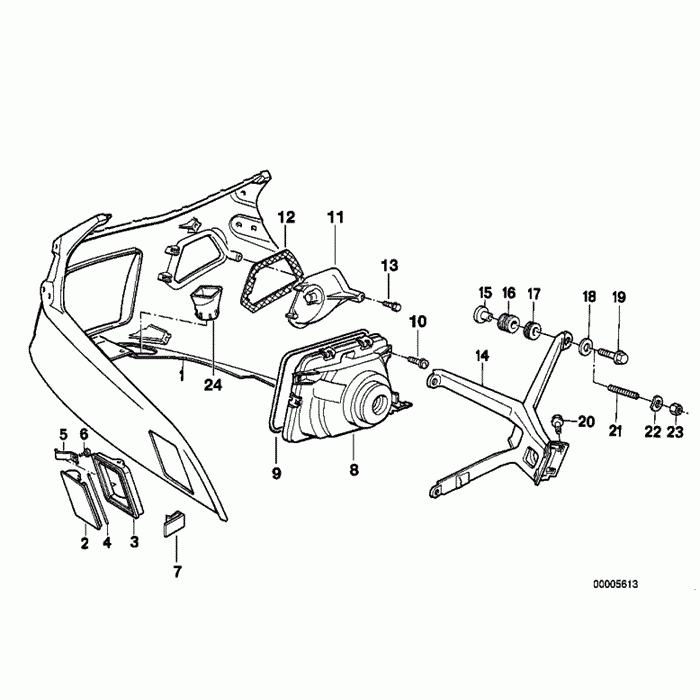

Casing upper part/headlight

BMW K75RT (K569)
BMW
#oem кодцена
01
46631451486
Trim Upper Prime Coated - Without Luftklappe
01
46632308029
Trim Upper Prime Coated - With Luftklappen (from 06/88)
02
46632308089
Flap Prime Coatedleft (from 06/88)
02
46632308090
Flap Prime Coated Right (from 06/88)
03
46632308093
Frame - Left (from 06/88)
03
46632308094
Frame - Right (from 06/88)
04
46632308015
Axle (from 06/88)
05
46632308033
Bracket (from 06/88)
07
51219062449
Clamp (from 06/88)
08
63122305350
Headlight
09
46631450619
Прокладка
10
07119907582
Fillister Head Screw - M5x12-z1
10
07119907595
Fillister Head Screw - M5x12-z3-1
11
63231459095
Left Turn Indicator
11
63231459096
Right Turn Indicator
12
63231459149
Gasket Left
12
63231459474
Gasket Right
13
07119915104
Hex Bolt With Washer - M5x12-sb-z1
14
46632316170
Крепление
15
46631451275
Втулка
16
46631451277
Уплотнитель резиновый
17
46631451278
Вставка
18
07146977329
Washer - 6, 4 Zns3
18
46636977329
Washer - 6, 4
18
62211244072
Шайба
19
07119915036
Hex Bolt - M6x22
19
07119913980
Hex Bolt - M6x30-z3
20
46512311423
Screw - M6x18
20
07119900033
Hex Bolt With Washer - M6x16-z1-10.9
21
07119940965
Pin - M6x35
22
07119932122
Шайба
23
07119905543
Гайка шестигранная - M6
