Подножки

BMW R100GS 91-95 (47E2)

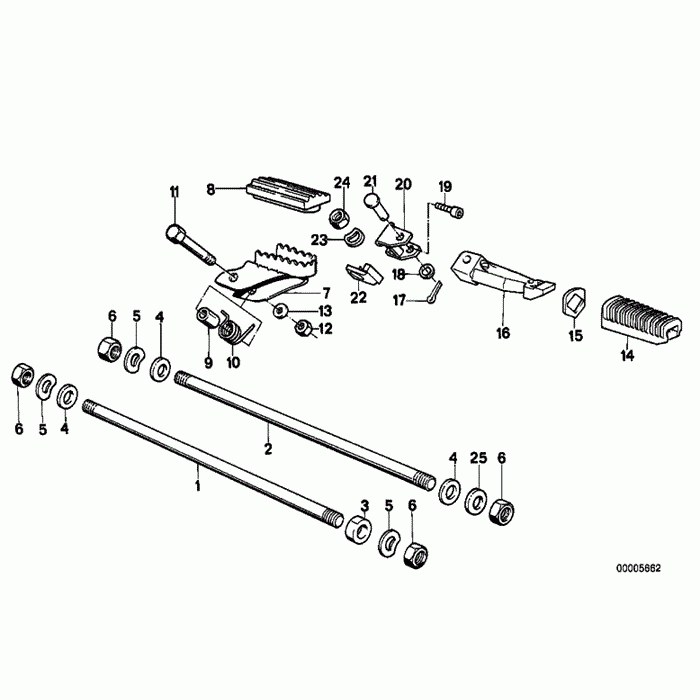

Подножки

#

oem код

название

цена

01

Pin - 315mm

Pin - 315mm

For Vehicles With Crash Bar, Front, And Side Support (code: X591a)

02

Pin - 298mm

Pin - 298mm

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

03

Проставка

Проставка

Front Left

04

Шайба

Шайба

06

Hex Nut - M12x1, 5

Hex Nut - M12x1, 5

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

07

Footrest, Left

Footrest, Left

For Vehicles With Authorities France R65gs (code: X105a)

07

Footrest, Right

Footrest, Right

08

Bushing - Left

Bushing - Left

For Vehicles With Authorities France R65gs (code: X105a)

08

Bushing - Right

Bushing - Right

09

Гильца

Гильца

For Vehicles With Authorities France R65gs (code: X105a)

10

Spring - Left

Spring - Left

For Vehicles With Authorities France R65gs (code: X105a)

10

Spring - Right

Spring - Right

11

Hex Bolt - M8x55

Hex Bolt - M8x55

For Vehicles With Authorities France R65gs (code: X105a)

12

Self-locking Hex Nut - M8

Self-locking Hex Nut - M8

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

13

Washer - A8, 4-zns

Washer - A8, 4-zns

Four Speed Gearbox

14

Bushing (to 08/92)

Bushing (to 08/92)

15

Шайба

Шайба

*fg R65/20 Kw 643 11 35/ R65/35 Kw 6 11 80 22/ R65 Rt Behrde 646 07 42/ R80 644 62 35/ R80 Rt 647 64 23 4 23/r65 Usa 35 Kw 612 85 16/ R80 Usa 648 11 18/r80 Rt Usa 649 14 51

16

Footrest, Rear Left

Footrest, Rear Left

Exchangeable In Pairs Only

16

Footrest, Rear Right

Footrest, Rear Right

Only In Conjunction With

17

Split Pin - 2x16

Split Pin - 2x16

18

Washer - A8, 4-zns

Washer - A8, 4-zns

Four Speed Gearbox

19

Hex Bolt - M10x25

Hex Bolt - M10x25

19

Hex Bolt - M10x45

Hex Bolt - M10x45

Only Applies To Footpeg

20

Supporting Bracket

Supporting Bracket

Only Applies To Footpeg

21

Pin - D=8mm/l=36mm

Pin - D=8mm/l=36mm

Fg* R65/20 Kw 643 11 35/ R65/35 Kw 6 11 80 22/ R65 Rt Behrde 646 07 42/ R80 644 62 35/ R80 Rt 647 64 23 4 23/r65 Usa 35 Kw 612 85 16/ R80 Usa 648 11 18/r80 Rt Usa 649 14 51

22

Стопор

Стопор

Only In Conjunction With

23

Шайба

Шайба

24

Hex Nut - M10

Hex Nut - M10

Exchangeable In Pairs Only

25

Washer - 13

Washer - 13
