Collapsible stand/side stand Оригинальные запчасти для мотоциклов BMW R1100RS (259S) (1999)

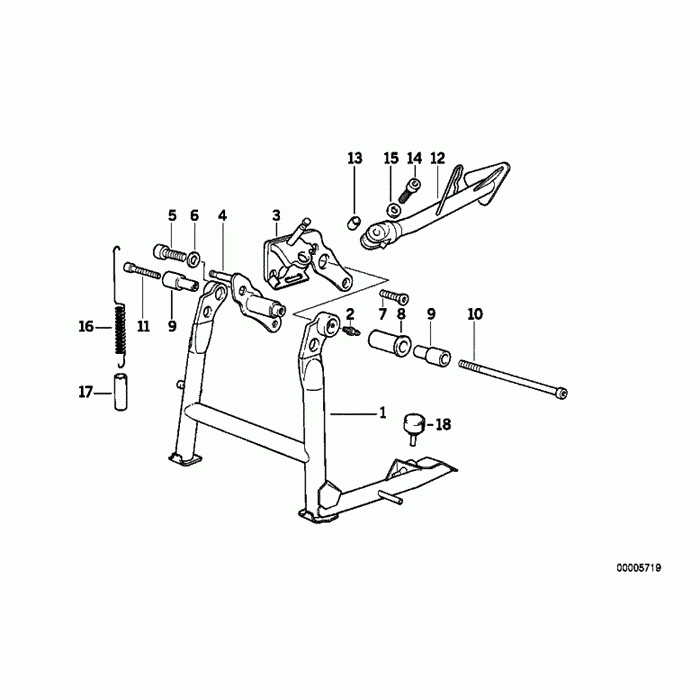

Collapsible stand/side stand

BMW R1100RS (259S)

oem код

название

цена

46522311923

Center Stand (to 03/95)

23411238306

Ниппель

Only Applies To Lowered Suspension

46522325381

Bracket Left

Only In Conjunction With

46522312495

Bracket Right (to 03/95)

07119900557

Fillister-head Screw - M12x30

07119931699

Washer - 13

07119900138

Countersunk Head Screw - M8x25

46522312503

Bush Left (to 03/95)

46522312505

Bush (to 03/95)

46522311973

Fillister-head Screw (to 03/95)

07119902984

Fillister-head Screw - M8x40 Zns3

For Vehicles With Windshield (code: X621a)

46532312017

Side Stand

46537663055

Bush Bearing

11367545863

Torx Bolt - M10x1x30

Only In Conjunction With

07119901049

Fillister-head Screw - M10x30

07119904198

Washer - Zns3

For Vehicles With Abs, Fully Integral (code: X415a)

Tension Spring

Резиновый патрубок

Support - H=16

Center Stand

Spacer Right - 4, 5

Spacer Left - 2, 5

Only Applies To Spoke Wheel

Bracket Right

Stud Bolt - M8x105

O-ring - 17x1, 8

Bearing Bolt

Bush Bearing

Washer - Zns3

For Vehicles With Abs, Fully Integral (code: X415a)

07119901049

Fillister-head Screw - M10x30

11367545863

Torx Bolt - M10x1x30

Only In Conjunction With

Side Stand

Tension Spring

Резиновый патрубок

Support - H=16

Covering Cap

Fillister Head Screw - M8x16
