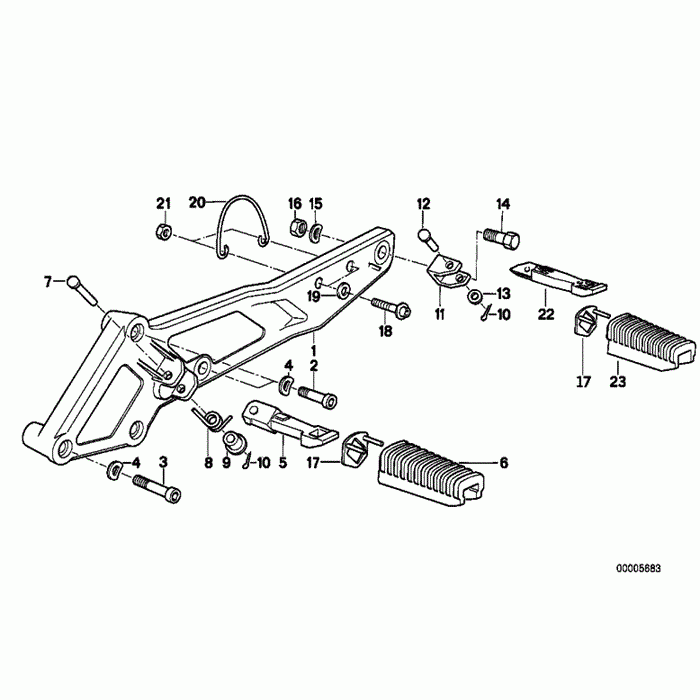

Footpeg plate/footpeg

BMW K1 (89V1)

Footpeg plate/footpeg

#

oem код

название

цена

01

Plate Left

Plate Left

01

Plate Right

Plate Right

02

Fillister-head Screw - M8x50

Fillister-head Screw - M8x50

Only Applies To Footpeg

02

Fillister-head Screw - M8x30

Fillister-head Screw - M8x30

03

Fillister-head Screw - M8x40 Zns3

Fillister-head Screw - M8x40 Zns3

For Vehicles With Windshield (code: X621a)

03

Fillister-head Screw - M8x45 (to 08/91)

Fillister-head Screw - M8x45 (to 08/91)

04

Упругая Шайба

Упругая Шайба

For Handlebar Board High

05

Footrest, Left

Footrest, Left

05

Footrest, Right

Footrest, Right

Only Applies To

06

Footrest Rubber

Footrest Rubber

07

Pin - 8x55 (to 08/92)

Pin - 8x55 (to 08/92)

08

Retainer Spring Left

Retainer Spring Left

08

Retainer Spring Right

Retainer Spring Right

09

Гильца

Гильца

10

Split Pin - 2x16

Split Pin - 2x16

11

Supporting Bracket - Black (to 08/92)

Supporting Bracket - Black (to 08/92)

12

Pin - D=8mm/l=36mm

Pin - D=8mm/l=36mm

Fg* R65/20 Kw 643 11 35/ R65/35 Kw 6 11 80 22/ R65 Rt Behrde 646 07 42/ R80 644 62 35/ R80 Rt 647 64 23 4 23/r65 Usa 35 Kw 612 85 16/ R80 Usa 648 11 18/r80 Rt Usa 649 14 51

13

Washer - A8, 4-zns

Washer - A8, 4-zns

Four Speed Gearbox

14

Fillister-head Screw - M10x30

Fillister-head Screw - M10x30

15

Шайба

Шайба

16

Hex Nut - M10

Hex Nut - M10

Only In Conjunction With

16

Self-locking Hex Nut - M10

Self-locking Hex Nut - M10

22

Footrest, Rear Left

Footrest, Rear Left

22

Footrest, Rear Right

Footrest, Rear Right

Only Applies To

23

Footrest Rubber

Footrest Rubber
