Electrically adjustable windshield Оригинальные запчасти для мотоциклов BMW K75RT (K569) (1989)

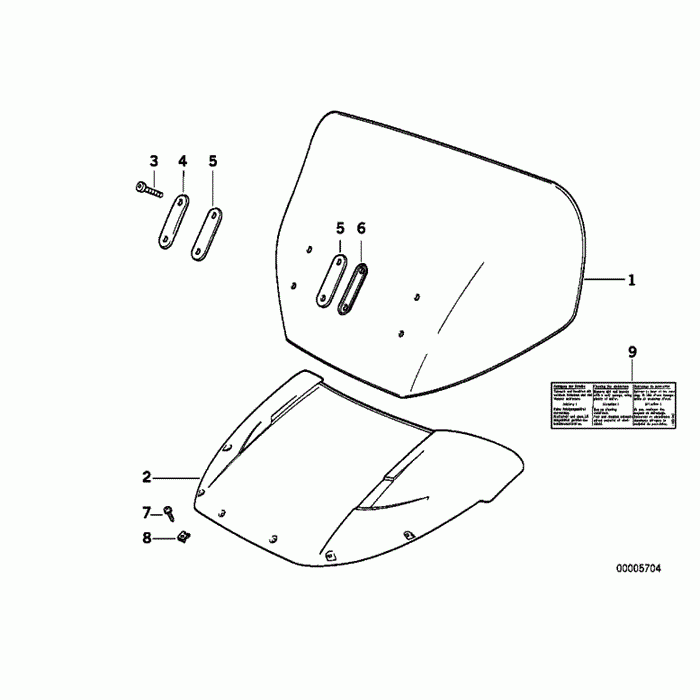

Electrically adjustable windshield

BMW K75RT (K569)

oem код

название

цена

46632307474

Windshield - 6mm

46632309178

Carrier - Black

For Vehicles With Grundiert F.ersatzteile-motorrad (code: U500)

46637651349

Fillister Head Screw - M5x20

46632307537

Cover - 6mm

Only In Conjunction With

Cover - 5mm

Подушка изолирующая

Pad Lower

Sheet Metal Screw - St 4, 2x19

07147153456

Sheet Metal Nut, Self-locking

46637153456

Body Nut

46632307475

Лейбл

46632307537

Cover - 6mm

Only In Conjunction With

67162305094

Actuator

46632309779

Пластина

46632309923

Bump Stop - H=5, 5mm

For Vehicles With Windscreen, High, Without Flaps (code: X553a)

Mounting Plate Left

Mounting Plate Right

Rail Left

Rail Right

Fillister Head Screw - M4x12

46632309771

Sliding Piece - Left

46632309772

Sliding Piece - Right

46632309780

Трубка

46632309977

Зажим

07119907634

Fillister Head Screw - M5x25

Guide Bush

Lever Left

Lever Right

Grub Screw - M6x20

Гайка шестигранная - M6

*fg R100t 6 150 392 / R100rt 6 165 364 / R100rt/usa) 6 196 835

46632309775

Шток

11619903045

O-ring - 6.5x2.0 (from 04/89)

O-ring - 6, 3x2, 4

Fillister Head Screw

Штифт

Circlip - 4, 0

Support Left

Support Right

Fillister Head Screw - M4x10

46632307223

Tension Spring

54121904824

Hose - L=335mm

07119906849

Fillister Head Screw - M5x10

46632309973

Outlet Hose

61131351044

Cable Clamp - D=15/b=4
