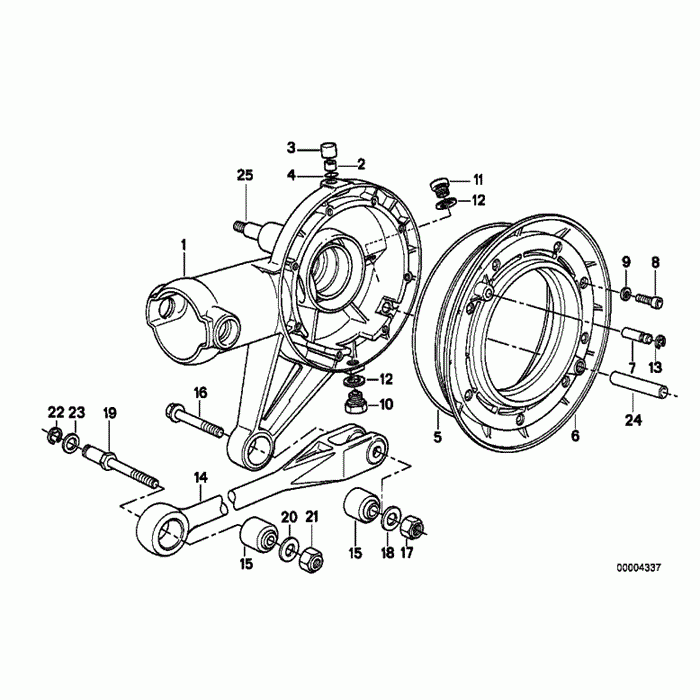

Rear-axle-drive parts Оригинальные запчасти для мотоциклов BMW R100GS (47E1) (1989)

Rear-axle-drive parts

BMW R100GS (47E1)

oem код

название

цена

Кожух

Гильца

Крышка

Уплотнительное кольцо

Only Applies To Abs

33111241257

O-ring - 171, 1x2, 62

33111457935

Housing Cover

33111241620

Pin (to 07/89)

07119902654

Fillister-head Screw - M8x35 (from 12/83)

Fg* K100 0 004 628/k100rs 0 012 889

07119931684

Washer - 8, 4

Not For Vehicles With Authorities France R65gs (code: X105a)

DIMPLEM14

Magnetic Drain Plug M14x1.5

11131744329

Screw Plug, Magnetic - M14x1,5

Only Applies To Transmission Code Letters P+r+s

33111451349

Screw Plug - M14x1, 5

07119963200

Gasket Ring - A14x18-al

See Service Information

07119932881

Circlip - 10, 0

33172310160

Rod, Blank (to 07/93)

33171458495

Rubber Mounting (to 07/93)

07119901180

Hex Bolt - M10x1, 25x70

07129964677

Self-locking Hex Nut - M10x1, 25

07119904198

Washer - Zns3

For Vehicles With Abs, Fully Integral (code: X415a)

35211458082

Bearing Bolt

07119904198

Washer - Zns3

For Vehicles With Abs, Fully Integral (code: X415a)

07129964677

Self-locking Hex Nut - M10x1, 25

07119934072

Lock Ring - 14x1

07119932642

Shim - 15x21x2

33111452568

Protection Tube - D=15, 8/l=94, 5mm

33111458149

Threaded Bolt
