Differential-housing/housing cover Оригинальные запчасти для мотоциклов BMW R100RT 88-95 (2478) (1989)

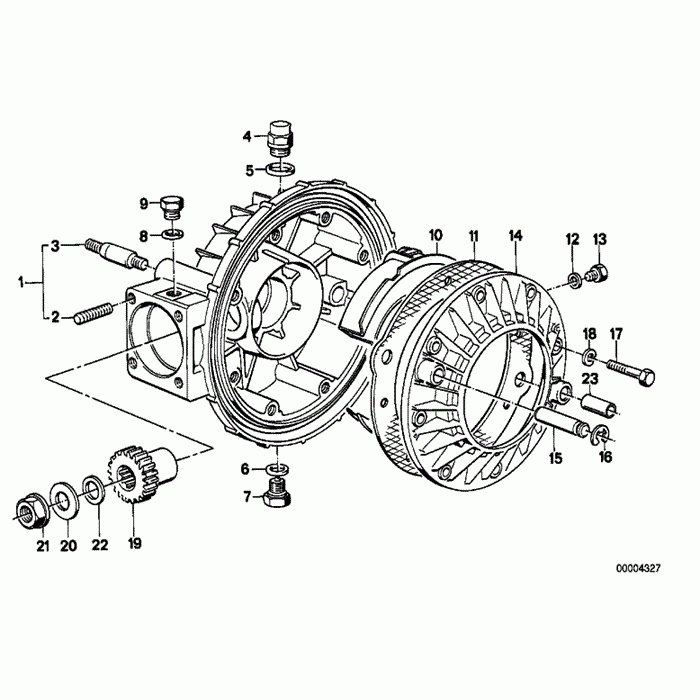

Differential-housing/housing cover

BMW R100RT 88-95 (2478)

oem код

название

цена

Кожух

Шпилька

Threaded Bolt

Screw Plug With Ventilation - M18x1, 5

07119963300

Gasket Ring - A18x22

Only In Conjunction With

07119963200

Gasket Ring - A14x18-al

See Service Information

11131744329

Screw Plug, Magnetic - M14x1,5

Only Applies To Transmission Code Letters P+r+s

DIMPLEM14

Magnetic Drain Plug M14x1.5

07119963130

Gasket Ring - A12x15, 5 Al

Only In Conjunction With

07119919225

Screw Plug - Am12x1, 5

33111239080

Protection Plate (from 09/80)

33112311097

Gasket Asbestos Free (from 09/80)

07119963041

Gasket Ring - A8x11, 5-al

07119919209

Screw Plug - M8x1 (from 09/80)

Housing Cover

Pin (to 07/89)

Circlip - 10, 0

Hex Bolt - M8x30-8.8-zns3

07119905531

Hex Bolt - M8x30-zns

07119904115

Упругая Шайба

For Handlebar Board High

Hub

Washer - 17

Collar Nut

Прокладка

Only In Conjunction With

33112301699

Pipe - D=15, 8/l=84, 5mm
