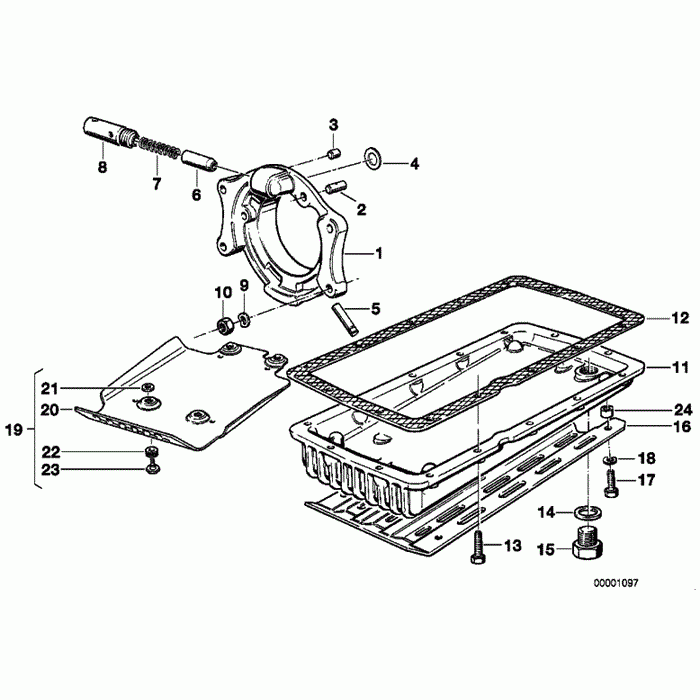

Bearing cover/oil pan/aggregate guard

BMW R65GS (2471)

Bearing cover/oil pan/aggregate guard

#

oem код

название

цена

01

Крышка подшипника

Крышка подшипника

02

Dowel Pin - 4x10

Dowel Pin - 4x10

03

Заглушка

Заглушка

04

Cover Lid - D=16mm

Cover Lid - D=16mm

05

Штифт

Штифт

06

ПОРШЕНЬ

ПОРШЕНЬ

Only In Conjunction With

07

Пружина сжатия

Пружина сжатия

08

Hollow Bolt

Hollow Bolt

Only In Conjunction With

09

Wave Washer - B8

Wave Washer - B8

10

Hex Nut - M8-8-zns3

Hex Nut - M8-8-zns3

Only In Conjunction With

11

Oil Pan (to 09/80)

Oil Pan (to 09/80)

12

Прокладка

Прокладка

13

Hex Bolt With Washer - M6x20-z3-zns

Hex Bolt With Washer - M6x20-z3-zns

14

Gasket Ring - A18x22

Gasket Ring - A18x22

Only In Conjunction With

15

Screw Plug - M18x1, 5-zns

Screw Plug - M18x1, 5-zns

16

Protection Plate

Protection Plate

17

Hex Bolt - M6x16-8.8 Zn (to 09/75)

Hex Bolt - M6x16-8.8 Zn (to 09/75)

18

Шайба

Шайба

19

Set: Instal.set Aggregate Lower Protect.front

Set: Instal.set Aggregate Lower Protect.front

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

20

Sump Guard Large

Sump Guard Large

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a) Consisting Of

21

Washer - 6, 4 Zns3

Washer - 6, 4 Zns3

22

Уплотнитель резиновый

Уплотнитель резиновый

23

Винт

Винт
