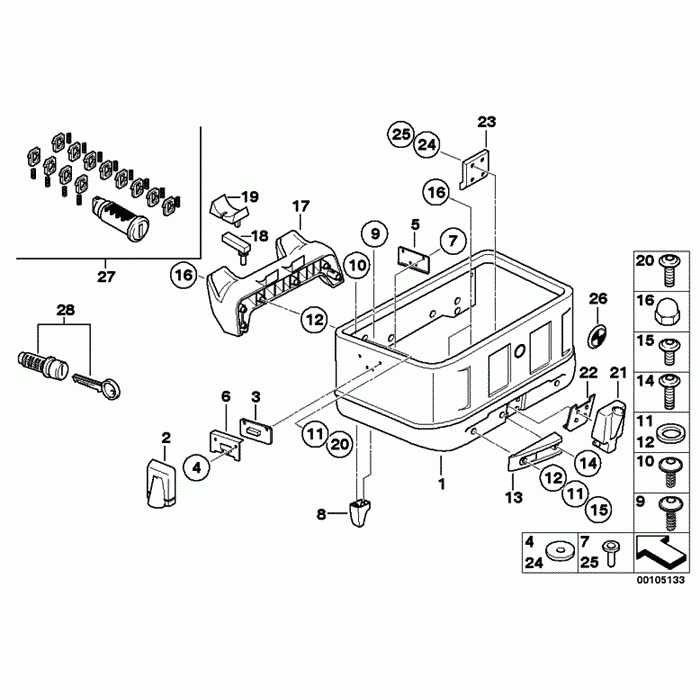

Bottom section of aluminum case

BMW R1150GS ADV (R21A)

Bottom section of aluminum case

#

oem код

название

цена

01

Bottom Part, Case Left

Bottom Part, Case Left

01

Bottom Part, Case Right

Bottom Part, Case Right

02

Cap Lock Without Cylinder

Cap Lock Without Cylinder

Only Applies To

03

Замок

Замок

04

Washer-gasket

Washer-gasket

05

Reinforcement Plate

Reinforcement Plate

06

Основа

Основа

07

Blind Rivet - 3, 2x11, 5

Blind Rivet - 3, 2x11, 5

08

Суппорт

Суппорт

09

Self Tapping Screw - 50x25

Self Tapping Screw - 50x25

10

Self Tapping Screw - 50x12

Self Tapping Screw - 50x12

10

Fillister Head Screw - K50x12

Fillister Head Screw - K50x12

11

Шайба

Шайба

12

Washer - A5, 3

Washer - A5, 3

13

Rubber Strip Left

Rubber Strip Left

13

Rubber Strip Right

Rubber Strip Right

14

Fillister Head Screw - M5x22

Fillister Head Screw - M5x22

15

Fillister Head Screw - M5x14

Fillister Head Screw - M5x14

16

Cap Nut - M5

Cap Nut - M5

17

Mounting Plate

Mounting Plate

18

Подушка изолирующая

Подушка изолирующая

19

Подушка изолирующая

Подушка изолирующая

20

Fillister Head Screw - M5x16

Fillister Head Screw - M5x16

21

Case Suspension Catch

Case Suspension Catch

22

Основа

Основа

23

Основа

Основа

24

Шайба

Шайба

25

Blind Rivet - 3, 2x18, 5

Blind Rivet - 3, 2x18, 5

26

Badge - D=21mm

Badge - D=21mm

27

Set: Rep.kit F Lock Cylinder

Set: Rep.kit F Lock Cylinder

Important Notice! Before Ordering Keys, Central Locking Systems, Control Units (ews Immobilizer/cas), Etc., It Is Vital To Ensure That The Customer And/or Vehicle Owner Present Proof Of Authorization

28

Set Of Locks Top Case

Set Of Locks Top Case

Not Suitable For Vehicle Uniform Locking System
