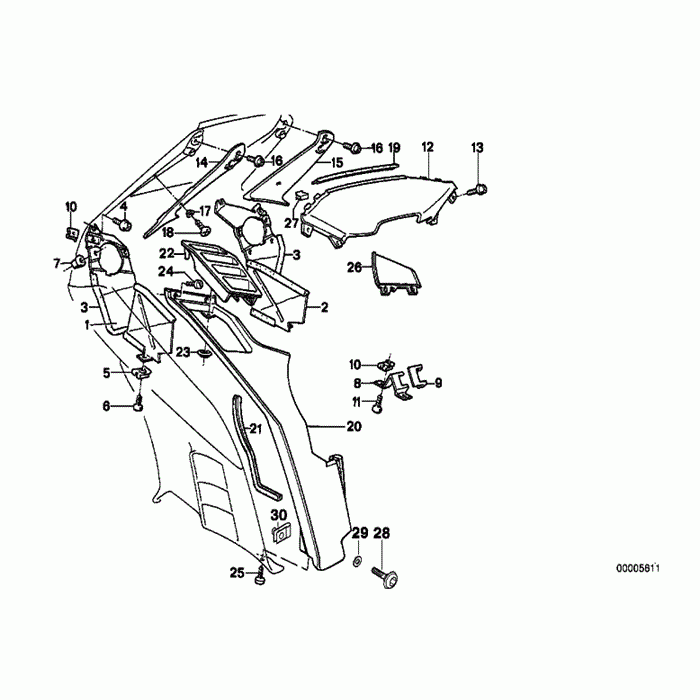

Trim panel mounting parts

BMW K100RS (K589)
BMW
#oem кодцена
01
46631451483
Bracket Left
02
46631451484
Bracket Right
03
46631453223
Gasket - 215mm
04
07119907589
Fillister Head Screw - M5x10-z3-1
04
07119907582
Fillister Head Screw - M5x12-z1
05
07129904221
Body Nut - St4, 2-3-zns3
05
07129901645
Body Nut - St4, 2-2zns
06
46631453297
Fillister Head Self-tapping Screw - St4, 2x16
07
52531451393
Expanding Nut
08
46631451618
Bracket Right
08
46631451617
Bracket Left
09
46631453139
Крепление
10
07129904220
Body Nut - 4, 2-1-zns3
10
07129901645
Body Nut - St4, 2-2zns
11
46631453297
Fillister Head Self-tapping Screw - St4, 2x16
12
46632309119
Covering Center
13
07119904310
Sheet Metal Screw - 4, 2x13
14
46631451265
Covering Left
15
46631451266
Covering Right
16
07119907582
Fillister Head Screw - M5x12-z1
16
07119907595
Fillister Head Screw - M5x12-z3-1
17
51211859979
Hollow Washer
18
07119901268
Sheet-metal Screw, Black - St4,2x13
19
46631453299
Прокладка
20
46632309123
Covering Left
20
46632309168
Covering Right
21
46631453258
Gasket - 340mm
22
46631453041
Covering Upper Left
22
46631453042
Covering Upper Right
23
46631453262
Гайка
24
07119904176
Sheet Metal Screw - St4, 2x19-u2-c-h
25
07119907951
Fillister Head Self-tapping Screw - St3, 5x13-z1
26
46631453111
Covering Left (to 07/94)
26
46631453112
Covering Right (to 07/94)
27
46631453496
Зажим
