Radio installing kit Оригинальные запчасти для мотоциклов BMW K100RT (K589) (1988)

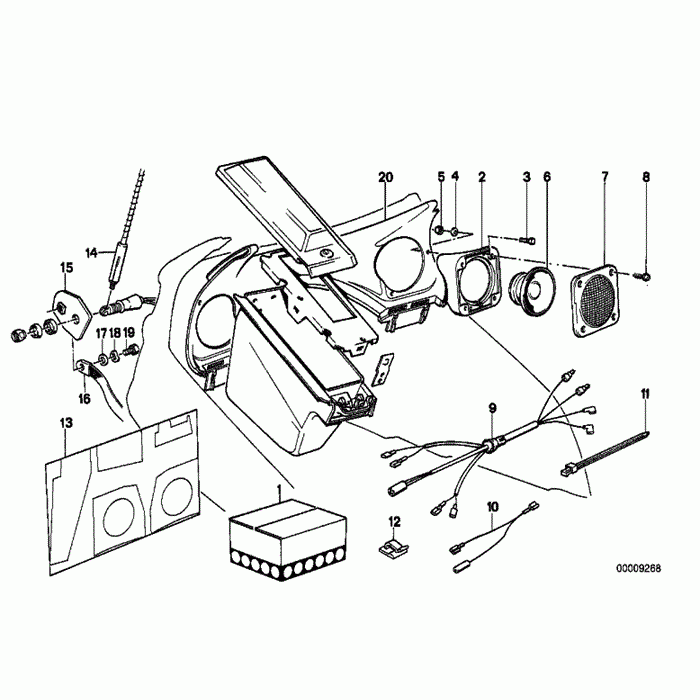

Radio installing kit

BMW K100RT (K589)

oem код

название

цена

65142315570

Set: Radio Installing Kit (from 04/85)

Only In Conjunction With

Adaptor Left

Adaptor Right

Hex Bolt - M5x25

Hex Bolt - M5x16

Washer - 5, 3

Hex Nut - M5

Loudspeaker - 4 Ohm 15/25w

65132303309

Ring Cover

07119907812

Fillister Head Self-tapping Screw - St4, 2x9, 5-z1

61122303241

Трубопровод

61122303326

Трубопровод

61131377134

Cable Strap - L=292mm/b=4, 8mm

For Vehicles With I-abs Generation 2 (code: X630a)

61131367599

кабельный бандаж - L=200mm/b=3, 6mm

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

Крепление

Drilling Stencil

Antenna

Опорная Пластина

Earth Strap

Washer - 5, 3

Wave Washer - B5

Hex Bolt - M5x10

Cover Center F Loudspeaker

65132315572

Loudspeaker - 4 Ohm 15/25w

65132325462

Loudspeaker - 4 Ohm 20/30 W

46631453887

Pin - 28mm

46632303359

Mounting Plate Left

46632303360

Mounting Plate Right

Only In Conjunction With

Left Cover/radio

Крепление

Shackle

Hex Bolt - M4x8

Washer - A4, 3

Wave Washer - B4

Hex Nut - M4

Зажим

Fillister Head Screw - M4x6

46631453176

Cover Right

65142303247

Left Saddel Bag/radio
