Supplementary set footpeg Оригинальные запчасти для мотоциклов BMW K75S (K569) (1988)

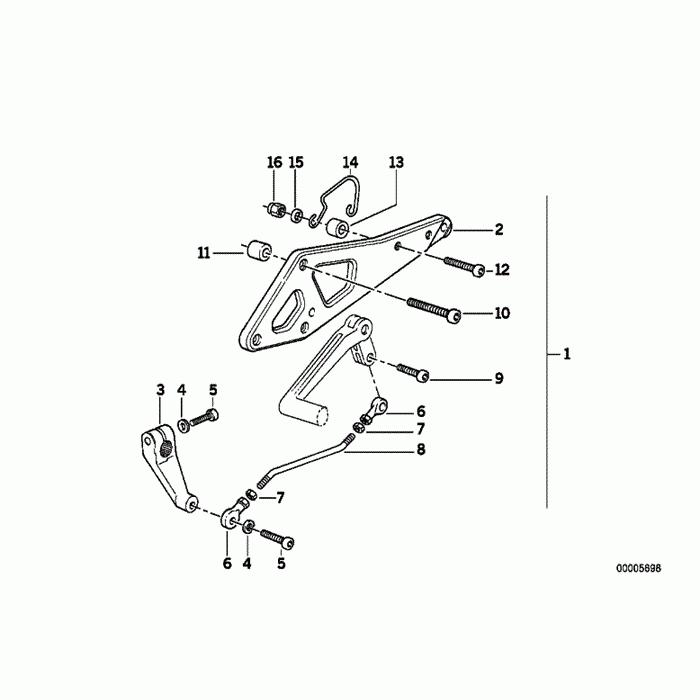

Supplementary set footpeg

BMW K75S (K569)

oem код

название

цена

46512315760

Supplementary Set Footpeg (from 09/85)

Only Applies To Disk Brake

46512315763

Footrest Plate, Left (from 09/85)

46512315764

Footpeg Plate Right (from 09/85)

23311461998

Shift Lever

07119932122

Шайба

23119900190

Болт с цилиндрической головкой M6x20

46512315782

Joint Link (from 09/85)

46512315783

Selector Rod (from 09/85)

46512315781

Countersunk Head Screw - M6x16 (from 09/85)

07119902984

Fillister-head Screw - M8x40 Zns3

For Vehicles With Windshield (code: X621a)

07119901035

Fillister-head Screw - M8x55

46512315793

Bush - 32mm, D=18mm (from 09/85)

46512315794

Bush - 18mm, D=18mm (from 09/85)

07119919625

Fillister-head Screw - M6x25-zns

07119919628

Fillister-head Screw - M6x40

46512315792

Bush - 10mm, D=18mm (from 09/85)

46712311822

Bow

07119931018

Washer - A6, 4-zns

07129904876

Гайка шестигранная- M6-8-zns3

Only For Right Side

46512315715

Badge (from 09/85)

Only Applies To

07129906866

Hex Nut - M12

07119931021

Washer - A13

Not For Vehicles With Additional Headlight (code: X562a)

46512315778

Bracket (from 09/85)

46512315775

Connector (from 09/85)

46512315776

Lock Ring (from 09/85)

46512315780

Shifting Fork (from 09/85)

46512315779

Lever (from 09/85)

46512315777

Hex Nut (from 09/85)

46512315766

Footrest (from 09/85)

07119933082

Spring Washer - B6

31422311105

Fillister-head Screw - M6x30

46512315767

Bracket (from 09/85)

35212315786

Coupling Yoke (from 09/85)

35212315787

Rear Brake Cam (from 09/85)

Support (from 09/85)

Spring (from 09/85)

Pin (from 09/85)

Washer - A8, 4-zns

Four Speed Gearbox

07129964675

Self-locking Hex Nut - M8

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

61311459588

Rear Stop Light Switch (to 10/00)

Only In Conjunction With

07119936439

Washer - 5, 3

07119904303

Fillister-head Screw - M5x10-8.8-znniv

Only In Conjunction With

12139904303

Fillister-head Screw - M5x10

23119900190

Болт с цилиндрической головкой M6x20

46512315791

Bush - 8mm, D=12mm (from 09/85)

34322315881

Set: Modification Kit F Brake Parts

For Vehicles With Anti Block System (abs)

34322315797

Brake Hose

07119902984

Fillister-head Screw - M8x40 Zns3

For Vehicles With Windshield (code: X621a)

07119901027

Fillister-head Screw - M8x35 Zns

Only Applies To Footpeg

Bush - 13mm, D=15mm

Bush - 8mm, D=15mm

Washer - A6, 4-zns

Гайка шестигранная- M6-8-zns3

Only For Right Side
