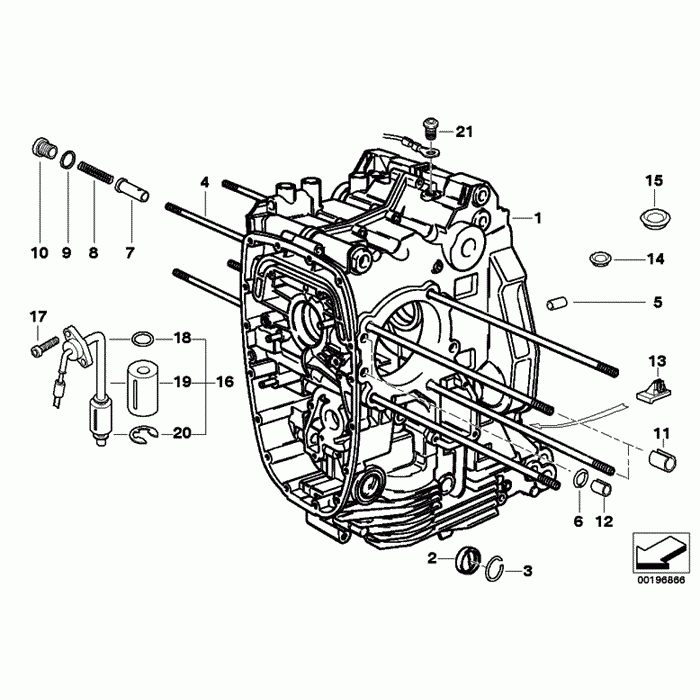

Картер двигателя Оригинальные запчасти для мотоциклов BMW R1200GS 05-07 (K25) (2005)

Картер двигателя

BMW R1200GS 05-07 (K25)

oem код

название

цена

11117668226

Engine Housing, Silver (to 10/07)

Not For Vehicles With Oil Level Warning (code: X510a)

11117702627

Engine Housing, Silver (to 10/07)

Not For Vehicles With Oil Level Warning (code: X510a) And On-board Computer (code: X539a)

11117653140

Engine Housing, Silver (to 10/07)

For Vehicles With Oil Level Warning (code: X510a)

11117701989

Engine Housing, Silver (from 10/07)

For Vehicles With Oil Level Warning (code: X510a) Or On-board Computer (code: X539a)

11118523906

Индикатор уровня масла

Prior To Pressing In The Oil Level Indicator, Wet It With Tire Fitting Paste.

Snap Ring - B42

Stud - M10x260, 5

Шпонка

Кольцо круглого сечения - 10, 5x1, 5

Only Applies To Rotating Ventilation

11411340780

ПОРШЕНЬ

11411460259

Пружина сжатия

07119963340

Уплотнительное кольцо - A20x24-al

Fitted Only On The Left

11411460483

Резьбовая пробка

11111340910

Dowel - D=16x14 L=13mm

11121726238

Центрирующая втулка - D=10, 5mm

11117704529

Клапан вентиляции картера

07119937211

Крышка- D=10mm

07119937227

Крышка - D=14mm

13627673502

Oil Levelling Switch (to 10/07)

For Vehicles With On-board Computer (code: X539a)

07129904588

Isa Screw - M6x16

For Vehicles With On-board Computer (code: X539a)

O-ring - 20, 8x2, 4

Поплавок

Стопорное Кольцо

Oval-head Screw With Anti-rotation Lock - M6x12

Ground Cable, Engine Block

11277710841

Compensating Shaft (from 10/07)

11277702622

Balance Weight (from 10/07)

Only In Conjunction With

11277710840

Gear Wheel - Z=60 (from 10/07)

11117721848

Shaft Seal - 25x37x6, 5 (from 10/07)

11277686883

Isa Screw - M8x70

Only In Conjunction With

11317710842

Auxiliary Shaft - Z=17 (from 10/07)

Only In Conjunction With

07119951430

Woodruff Key - 3x3, 7
