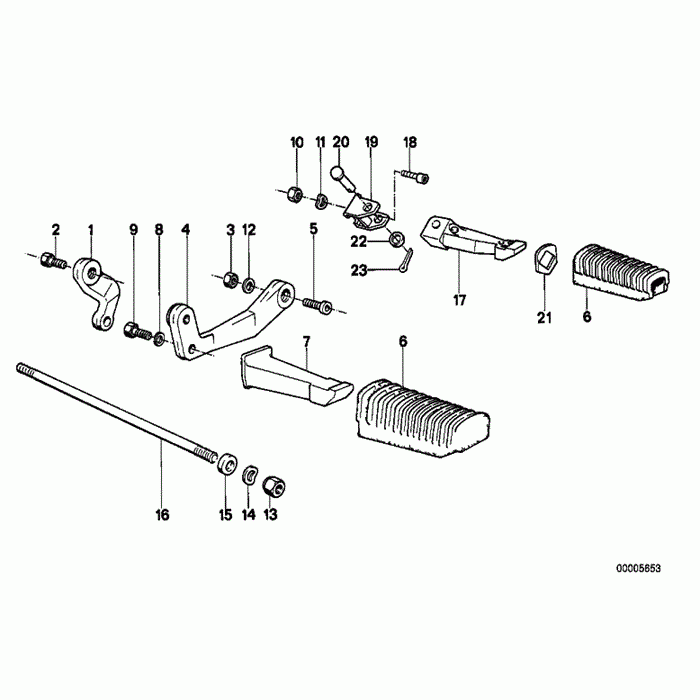

Подножки

BMW R100RS 88-93 (2478)

Подножки

#

oem код

название

цена

01

Plate - Right

Plate - Right

02

Fillister-head Screw - M10x30

Fillister-head Screw - M10x30

03

Self-locking Hex Nut - M10

Self-locking Hex Nut - M10

03

Hex Nut - M10

Hex Nut - M10

Only In Conjunction With

04

Plate - Left

Plate - Left

05

Fillister-head Screw - M10x40

Fillister-head Screw - M10x40

06

Bushing (to 08/92)

Bushing (to 08/92)

07

Footrest

Footrest

08

Шайба

Шайба

09

Hex Bolt - M10x30

Hex Bolt - M10x30

10

Hex Nut - M10

Hex Nut - M10

Exchangeable In Pairs Only

11

Шайба

Шайба

12

Washer - 10, 5

Washer - 10, 5

13

Hex Nut - M12x1, 5

Hex Nut - M12x1, 5

Not For Vehicles With Authorities Denmark 35 Kw (code: V005a) And Official Vehicle, Denmark (code: X101a) And Authorities France R65gs (code: X105a)

14

Washer - 13

Washer - 13

16

Pin - 306mm

Pin - 306mm

17

Footrest, Rear Left

Footrest, Rear Left

Exchangeable In Pairs Only

17

Footrest, Rear Right

Footrest, Rear Right

Only In Conjunction With

18

Hex Bolt - M10x25

Hex Bolt - M10x25

19

Supporting Bracket

Supporting Bracket

Only Applies To Footpeg

20

Pin - D=8mm/l=36mm

Pin - D=8mm/l=36mm

Fg* R65/20 Kw 643 11 35/ R65/35 Kw 6 11 80 22/ R65 Rt Behrde 646 07 42/ R80 644 62 35/ R80 Rt 647 64 23 4 23/r65 Usa 35 Kw 612 85 16/ R80 Usa 648 11 18/r80 Rt Usa 649 14 51

21

Шайба

Шайба

*fg R65/20 Kw 643 11 35/ R65/35 Kw 6 11 80 22/ R65 Rt Behrde 646 07 42/ R80 644 62 35/ R80 Rt 647 64 23 4 23/r65 Usa 35 Kw 612 85 16/ R80 Usa 648 11 18/r80 Rt Usa 649 14 51

22

Washer - A8, 4-zns

Washer - A8, 4-zns

Four Speed Gearbox

23

Split Pin - 2x16

Split Pin - 2x16

--

Стопор

Стопор

Only In Conjunction With
