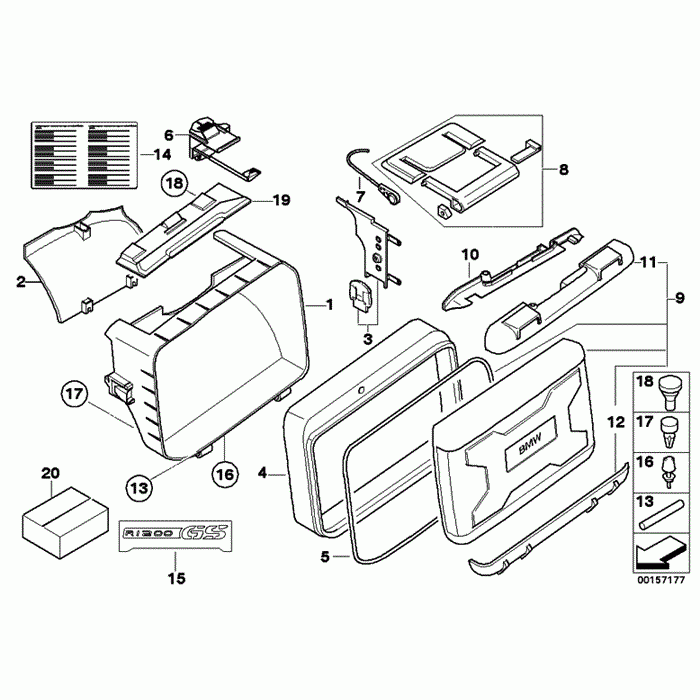

Детали телескопического кофра

BMW R1200GS 05-07 (K25)
BMW
#oem кодцена
01
46547677394
Case Bottom, Right
01
71607692175
Case Bottom, Left
02
71607691969
Heat Resistant Plate
03
46547687021
Adjust Plate Front Left
03
46547687022
Adjust Plate Front Right
03
46547687023
Adjust Plate Rear Left
03
46547687024
Adjust Plate Rear Right
04
46547677402
Adjust Frame
05
71607659600
Gasket, Case Lid - L=1420mm
06
46547679087
Rotary Lever, Unlocking, Topcase
06
51257687029
Topcase Locking Mechanism, Left
06
71607687030
Topcase Locking Mechanism, Right
07
71607692098
Catch - L=410mm
08
71607659597
Carrier Handle
09
46547677386
Case Lid/topcase Lid
10
71607682774
Lock Strip
11
46547677389
Protective Mouldings, Top
12
46547677390
Protective Mouldings, Bottom
13
71607660615
Hinge Axle
14
51147677409
Instruction Notice, Payload
14
71607689366
Label "distance Esd-suitcase"
15
46547684228
Sticker - R1200gs
16
52537664664
Bump Stop - H=10
17
18127651065
Stop Buffer - D12x6
18
52532347534
Rubber Support - D=18mm
19
46547683595
Cover Left
19
46547683596
Cover Right
20
71607665793
Set: Set Of Screws For Case
--
71607692173
Variable Case, Left, Without Lock Cyl.
