Alternator, individual parts Оригинальные запчасти для мотоциклов BMW K100LT (K589) (1987)

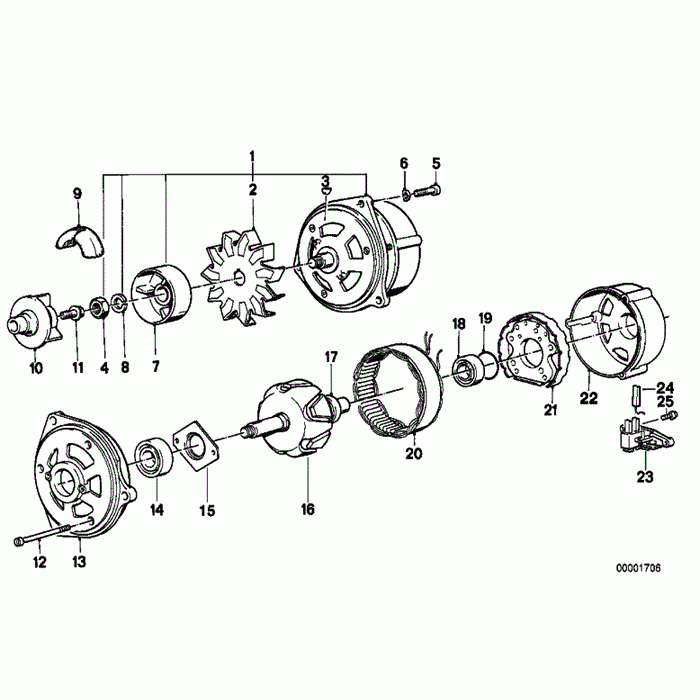

Alternator, individual parts

BMW K100LT (K589)

oem код

название

цена

12312305316

Generator - 33a (to 09/92)

12311459036

Fan Wheel (to 09/92)

07119951453

Woodruff Key - 4x5 (to 09/92)

12311459814

Hex Nut - M16x1, 5 (to 09/92)

For Vehicles With Reinforced Power Supply (code: X509a) Or Heated Handlebar Grips (code: X519a) Or Integral Abs (code: X645a) Or Abs Electronic Evo (code: X684a)

07119901309

Hex Nut - M14x1, 5 (to 02/87)

07119919643

Fillister-head Screw - M8x30 (to 09/92)

07119932095

Wave Washer - B8 (to 09/92)

12311460302

Clutch Housing (to 09/92)

07119933155

Spring Washer - B16 (to 09/92)

07119933148

Spring Washer - B14 (to 02/87)

12311464877

Rubber Mounting (to 09/92)

12311460304

Driving Dog (to 09/92)

12311461463

Screw - M8x40 (to 09/92)

12311460853

Screw - M8x22

Only In Conjunction With

12311459289

Fillister-head Screw (to 09/92)

12311459277

Housing Assy Front (to 09/92)

12311459278

Grooved Ball Bearing (to 09/92)

12311459279

Supporting Plate (to 09/92)

12311459280

Rotor (to 09/92)

12311459281

Slip Ring (to 09/92)

12311714521

Grooved Ball Bearing - 28x12x12 (to 09/92)

12311276224

O-ring (to 09/92)

12311459288

Stator Assy (to 09/92)

12311459284

Diode Assy (to 09/92)

12311459283

Housing Assy Rear (to 09/92)

12311459286

Voltage Regulator (to 09/92)

12311727756

Set: Carbon Brush Set (to 09/92)

12311459291

Screw (to 09/92)
