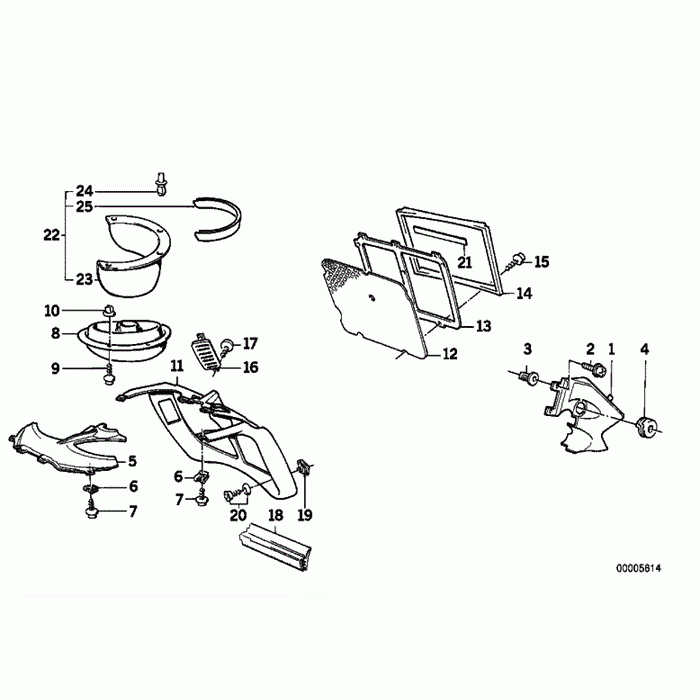

Radiotor trim panel center

BMW K100RT (K589)
BMW
#oem кодцена
01
46631453227
Covering Left
01
46631453228
Covering Right
02
07119904176
Sheet Metal Screw - St4, 2x19-u2-c-h
03
52531451393
Expanding Nut
04
46631453392
Уплотнитель резиновый
05
46631456001
Covering Lower Part - Black
06
07129901645
Body Nut - St4, 2-2zns
07
46631453297
Fillister Head Self-tapping Screw - St4, 2x16
08
46631450620
Прокладка
09
46631453298
Sheet Metal Screw
10
46631453058
Expanding Nut
11
46631451432
Radiotor Trim Panel Prime Coated Center
12
46631450941
Grid
13
46631450942
Рама
14
46632312922
Sealing Strip - 300mm
15
07119907951
Fillister Head Self-tapping Screw - St3, 5x13-z1
16
46631451581
Grid
17
07119907913
Fillister Head Self-tapping Screw - St3, 5x9, 5-z1
18
46631453907
Gasket - 305mm
18
46631453627
Gasket - 70mm
19
07129904221
Body Nut - St4, 2-3-zns3
20
46631453297
Fillister Head Self-tapping Screw - St4, 2x16
21
46631453980
Sealing Strip - 365x8x2mm
22
46632303389
Set: Retrofit Kit
23
31421455333
Air Inlet Left
23
31421455334
Air Inlet Right
24
51161881149
Expanding Rivet
25
46631456167
Edge Protection - 90mm
