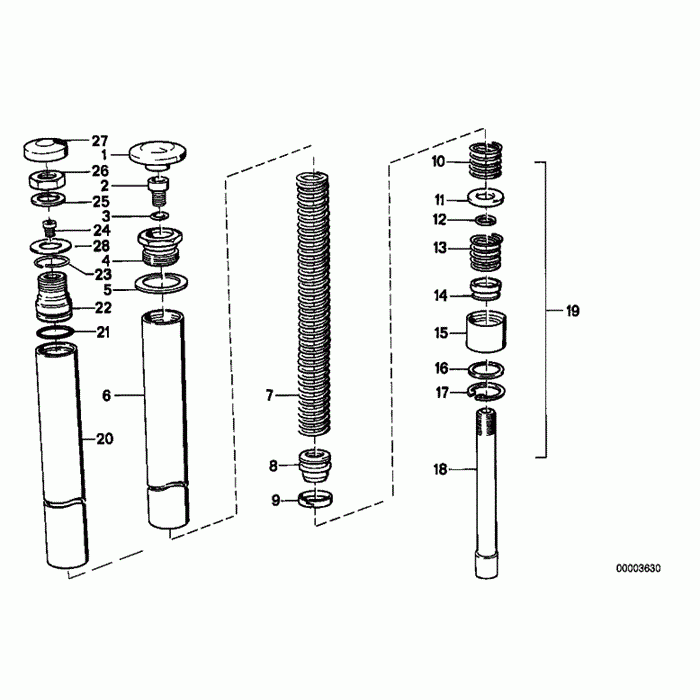

Вилка в разборе

BMW R65 (2472)

Вилка в разборе

#

oem код

название

цена

01

Cap (to 10/85)

Cap (to 10/85)

Only In Conjunction With

02

Fillister-head Screw - M10x12

Fillister-head Screw - M10x12

03

Gasket Ring - A10x13, 5-al

Gasket Ring - A10x13, 5-al

Only In Conjunction With

04

Spring Retainer (to 10/85)

Spring Retainer (to 10/85)

05

Shim - 22x30x1 (to 10/85)

Shim - 22x30x1 (to 10/85)

05

Washer - 45x34, 1x1, 25 (to 10/85)

Washer - 45x34, 1x1, 25 (to 10/85)

06

Stanchion

Stanchion

Only In Conjunction With Pos. 21,22,23,24,25,26,27, 28

07

Пружина сжатия

Пружина сжатия

08

Absorbing Piece

Absorbing Piece

09

Guide Ring

Guide Ring

10

Пружина сжатия

Пружина сжатия

11

Valve Washer

Valve Washer

12

Gasket Ring - 18x3, 5

Gasket Ring - 18x3, 5

13

Coil Spring

Coil Spring

14

Клапан

Клапан

15

Корпус Клапана

Корпус Клапана

16

Shim - 0, 100mm

Shim - 0, 100mm

16

Shim - 0, 300mm

Shim - 0, 300mm

16

Shim - 1, 600mm

Shim - 1, 600mm

16

Shim - 1, 700mm

Shim - 1, 700mm

16

Shim - 1, 800mm

Shim - 1, 800mm

16

Shim - 1, 900mm

Shim - 1, 900mm

16

Shim - 2, 000mm

Shim - 2, 000mm

17

Lock Ring - 34x1, 5

Lock Ring - 34x1, 5

18

Absorber

Absorber

20

Stanchion

Stanchion

Only In Conjunction With Pos. 21,22,23,24,25,26,27, 28

21

O-ring - 27x2

O-ring - 27x2

Fg* R65/20kw 643 01 00/r65/35kw 607 35 30 R65rt Behrde 646 00 39/r80 644 34 92 R80rt 647 34 47 Fg* R65/35kw Usa 646 00 39/r80 Usa 648 06 47 R80rt Usa 649 10 36

22

Spring Retainer

Spring Retainer

23

Snap Ring - 30x2

Snap Ring - 30x2

24

Screw Plug - M10x1 (to 08/91)

Screw Plug - M10x1 (to 08/91)

25

Шайба

Шайба

26

Hex Nut

Hex Nut

27

Крышка

Крышка

28

Shim - 26, 5x48x2

Shim - 26, 5x48x2
