Трансмиссия -Стандартное вращение Каталог оригинальных запчастей для лодочных моторов Johnson BJ200X4SDC (2006)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Johnson
2006
BJ200X4SDC
Трансмиссия -Стандартное вращение
Трансмиссия -Стандартное вращение

Трансмиссия -Стандартное вращение

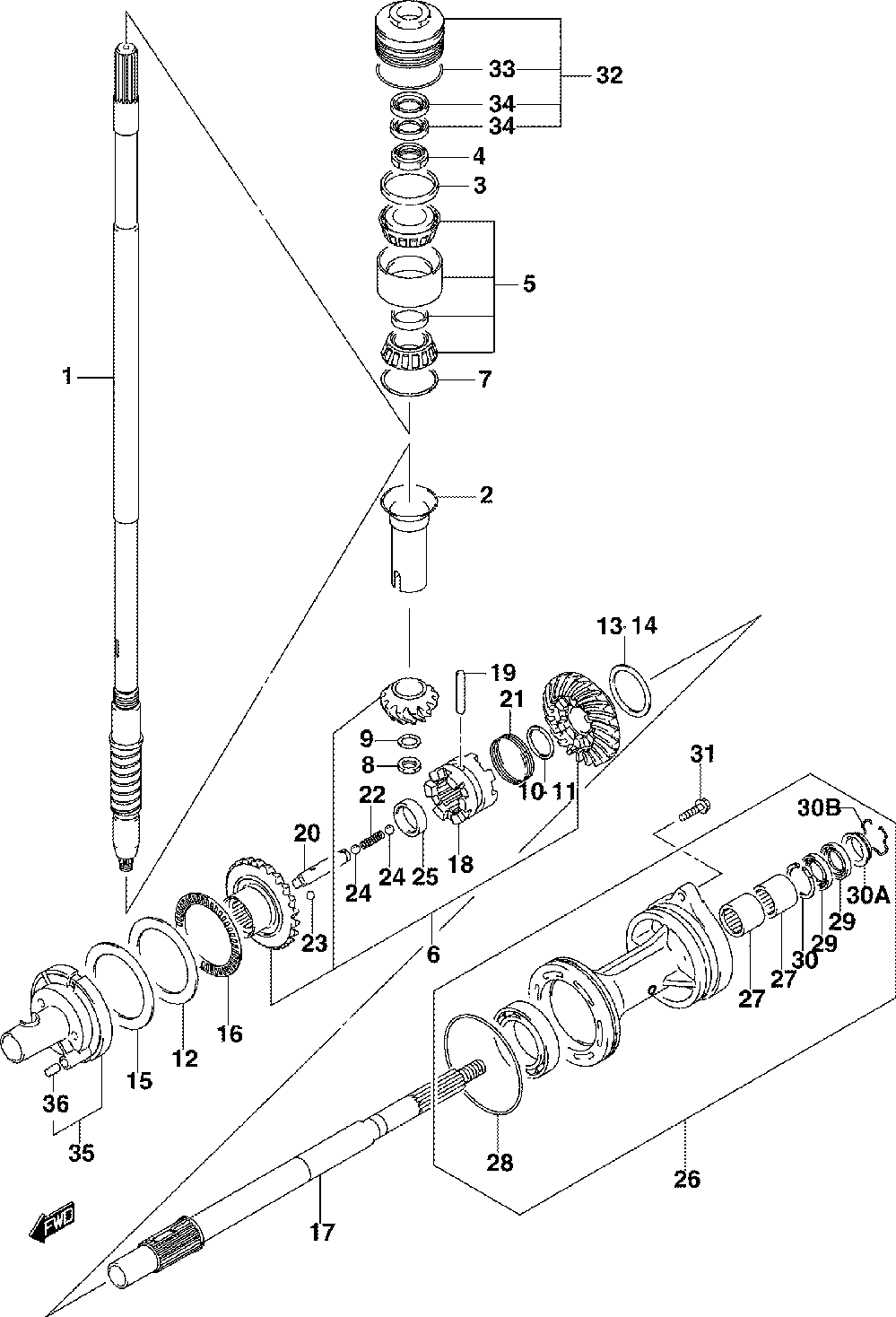

Johnson BJ200X4SDC

Трансмиссия -Стандартное вращение

#

oem код

название

цена

1

Shaft Ay, Drive-25"

Shaft Ay, Drive-25"

2

Collar, Driveshaft

Collar, Driveshaft

3

Spacer, D'shaft Brg

Spacer, D'shaft Brg

4

Nut, (m28)

Nut, (m28)

5

Bearing, Drive Shft

Bearing, Drive Shft

6

Pinion/gear Set

Pinion/gear Set

7

Shim, 60x66x0.45

Shim, 60x66x0.45

7

Shim, 60x66x0.50

Shim, 60x66x0.50

7

Shim, 60x66x0.55

Shim, 60x66x0.55

7

Регулировочная прокладка

Регулировочная прокладка

7

Shim, 60x66x0.65

Shim, 60x66x0.65

7

Shim, 60x66x0.70

Shim, 60x66x0.70

7

Shim, 60x66x0.75

Shim, 60x66x0.75

7

Shim, 60x66x0.80

Shim, 60x66x0.80

7

Shim, 60x66x0.85

Shim, 60x66x0.85

7

Shim, 60x66x0.90

Shim, 60x66x0.90

8

Гайка

Гайка

9

Шайба

Шайба

10

Shim Set, Reverse

Shim Set, Reverse

11

Washer(30x38x1.5)

Washer(30x38x1.5)

11

Washer, T:1.7

Washer, T:1.7

11

Washer, T:1.9

Washer, T:1.9

11

Washer, T:2.1

Washer, T:2.1

11

Washer (30x38x2.2)

Washer (30x38x2.2)

11

Washer, T:2.3

Washer, T:2.3

11

Washer, T:2.4

Washer, T:2.4

11

Washer (30x38x2.5)

Washer (30x38x2.5)

11

Шайба

Шайба

11

Шайба

Шайба

11

Шайба

Шайба

12

Washer, 75x100x2 (forward Gear )

Washer, 75x100x2 (forward Gear )

13

Shim Set

Shim Set

14

Shim (reverse Gear )

Shim (reverse Gear )

14

Shim, 50x62x1.1 (reverse Gear )

Shim, 50x62x1.1 (reverse Gear )

14

Shim, 50x62x1.2 (reverse Gear )

Shim, 50x62x1.2 (reverse Gear )

14

Shim, 50x62x1.3 (reverse Gear )

Shim, 50x62x1.3 (reverse Gear )

14

Shim, 50x62x1.4 (reverse Gear )

Shim, 50x62x1.4 (reverse Gear )

14

Shim, 50x62x1.5 (reverse Gear )

Shim, 50x62x1.5 (reverse Gear )

14

Shim, 50x62x1.6 (reverse Gear )

Shim, 50x62x1.6 (reverse Gear )

14

Shim, 50x62x1.7 (reverse Gear )

Shim, 50x62x1.7 (reverse Gear )

15

Shim, 75x100x0.50 (forward Gear )

Shim, 75x100x0.50 (forward Gear )

15

Shim 75x100x0.55

Shim 75x100x0.55

15

Shim, 75x100x0.60 (forward Gear )

Shim, 75x100x0.60 (forward Gear )

15

Shim, 75x100x0.65 (forward Gear )

Shim, 75x100x0.65 (forward Gear )

15

Shim, 75x100x0.70 (forward Gear )

Shim, 75x100x0.70 (forward Gear )

15

Shim, 75x100x0.75 (forward Gear )

Shim, 75x100x0.75 (forward Gear )

15

Shim, 75x100x0.80 (forward Gear )

Shim, 75x100x0.80 (forward Gear )

15

Shim, 75x100x0.85 (forward Gear )

Shim, 75x100x0.85 (forward Gear )

15

Shim, 75x100x0.90 (forward Gear )

Shim, 75x100x0.90 (forward Gear )

15

Shim, 75x100x0.95 (forward Gear )

Shim, 75x100x0.95 (forward Gear )

15

Shim, 75x100x1.00 (forward Gear )

Shim, 75x100x1.00 (forward Gear )

16

Подшипник опорный

Подшипник опорный

17

Вал гребново винта

Вал гребново винта

18

Shifter, Clutch Dog

Shifter, Clutch Dog

19

Штифт

Штифт

20

Pin, Connector

Pin, Connector

21

Пружина

Пружина

22

Spring, Detent

Spring, Detent

23

Ball, Detent #1

Ball, Detent #1

24

Ball, Detent #2

Ball, Detent #2

25

Стопор

Стопор

26

Hsg, Propshaft

Hsg, Propshaft

27

Подшипник

Подшипник

28

O-ring, Prop

O-ring, Prop

29

Сальник

Сальник

30

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

32

Hsg Comp, Dshft Brg

Hsg Comp, Dshft Brg

33

Уплотнительное кольцо

Уплотнительное кольцо

34

Сальник

Сальник

35

Hsg Comp, Fgear Brg

Hsg Comp, Fgear Brg

36

Pin, Knock

Pin, Knock

30B

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО
