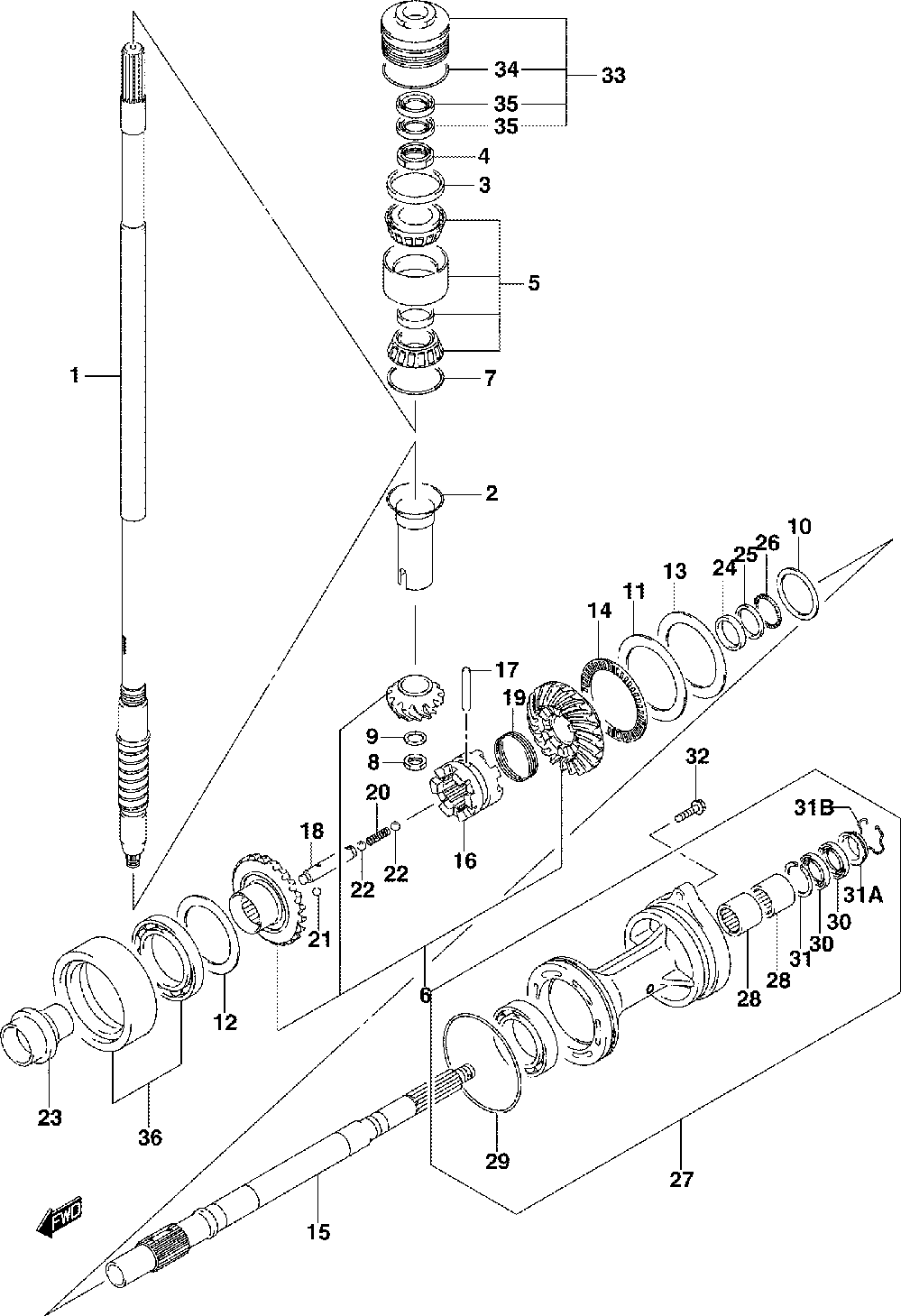

Johnson BJ225CX4DC

Трансмиссия

#

oem код

название

цена

1

Shaft Ay, Drive-25"

Shaft Ay, Drive-25"

2

Collar, Driveshaft

Collar, Driveshaft

3

Spacer, D'shaft Brg

Spacer, D'shaft Brg

4

Nut, (m28)

Nut, (m28)

5

Bearing, Drive Shft

Bearing, Drive Shft

6

Шестерня

Шестерня

7

Shim, 60x66x0.45

Shim, 60x66x0.45

7

Shim, 60x66x0.50

Shim, 60x66x0.50

7

Shim, 60x66x0.55

Shim, 60x66x0.55

7

Регулировочная прокладка

Регулировочная прокладка

7

Shim, 60x66x0.65

Shim, 60x66x0.65

7

Shim, 60x66x0.70

Shim, 60x66x0.70

7

Shim, 60x66x0.75

Shim, 60x66x0.75

7

Shim, 60x66x0.80

Shim, 60x66x0.80

7

Shim, 60x66x0.85

Shim, 60x66x0.85

7

Shim, 60x66x0.90

Shim, 60x66x0.90

8

Гайка

Гайка

9

Шайба

Шайба

10

Washer, 35x46x0.6

Washer, 35x46x0.6

10

Washer, 35x46x0.8

Washer, 35x46x0.8

10

Washer, 35x46x1.15

Washer, 35x46x1.15

10

Washer, 35x46x1.2

Washer, 35x46x1.2

10

Washer, 35x46x0.90

Washer, 35x46x0.90

10

Washer, 35x46x1.00

Washer, 35x46x1.00

10

Washer, 35x46x0.95

Washer, 35x46x0.95

10

Washer, 35x46x1.10

Washer, 35x46x1.10

10

Washer, 35x46x1.05

Washer, 35x46x1.05

11

Washer, 75x100x2 (forward Gear )

Washer, 75x100x2 (forward Gear )

12

Shim, 60x66x0.45 (reverse Gear )

Shim, 60x66x0.45 (reverse Gear )

12

Shim, 60x66x0.50 (reverse Gear )

Shim, 60x66x0.50 (reverse Gear )

12

Shim, 60x66x0.55 (reverse Gear )

Shim, 60x66x0.55 (reverse Gear )

12

Shim (reverse Gear )

Shim (reverse Gear )

12

Shim, 60x66x0.65 (reverse Gear )

Shim, 60x66x0.65 (reverse Gear )

12

Shim, 60x66x0.70 (reverse Gear )

Shim, 60x66x0.70 (reverse Gear )

12

Shim, 60x66x0.75 (reverse Gear )

Shim, 60x66x0.75 (reverse Gear )

12

Shim, 60x66x0.80 (reverse Gear )

Shim, 60x66x0.80 (reverse Gear )

12

Shim, 60x66x0.85 (reverse Gear )

Shim, 60x66x0.85 (reverse Gear )

12

Shim, 60x66x0.90 (reverse Gear )

Shim, 60x66x0.90 (reverse Gear )

13

Shim, 75x100x0.50 (forward Gear )

Shim, 75x100x0.50 (forward Gear )

13

Shim 75x100x0.55

Shim 75x100x0.55

13

Shim, 75x100x0.60 (forward Gear )

Shim, 75x100x0.60 (forward Gear )

13

Shim, 75x100x0.65 (forward Gear )

Shim, 75x100x0.65 (forward Gear )

13

Shim, 75x100x0.70 (forward Gear )

Shim, 75x100x0.70 (forward Gear )

13

Shim, 75x100x0.75 (forward Gear )

Shim, 75x100x0.75 (forward Gear )

13

Shim, 75x100x0.80 (forward Gear )

Shim, 75x100x0.80 (forward Gear )

13

Shim, 75x100x0.85 (forward Gear )

Shim, 75x100x0.85 (forward Gear )

13

Shim, 75x100x0.90 (forward Gear )

Shim, 75x100x0.90 (forward Gear )

13

Shim, 75x100x0.95 (forward Gear )

Shim, 75x100x0.95 (forward Gear )

13

Shim, 75x100x1.00 (forward Gear )

Shim, 75x100x1.00 (forward Gear )

14

Подшипник опорный

Подшипник опорный

15

Вал

Вал

16

Shifter, Clutch Dog

Shifter, Clutch Dog

17

Штифт

Штифт

18

Pin, Connector

Pin, Connector

19

Пружина

Пружина

20

Spring, Detent

Spring, Detent

21

Ball, Detent #1

Ball, Detent #1

22

Ball, Detent #2

Ball, Detent #2

23

Проставка

Проставка

24

Washer, 30x47x6.0

Washer, 30x47x6.0

25

Washer, 32x47x3.0

Washer, 32x47x3.0

26

Подшипник опорный

Подшипник опорный

28

Подшипник

Подшипник

29

O-ring, Prop

O-ring, Prop

30

Сальник

Сальник

31

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

33

Hsg Comp, Dshft Brg

Hsg Comp, Dshft Brg

34

Уплотнительное кольцо

Уплотнительное кольцо

35

Сальник

Сальник

36

Housing Comp

Housing Comp

31A

Protector, Oil Seal

Protector, Oil Seal

31B

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО
