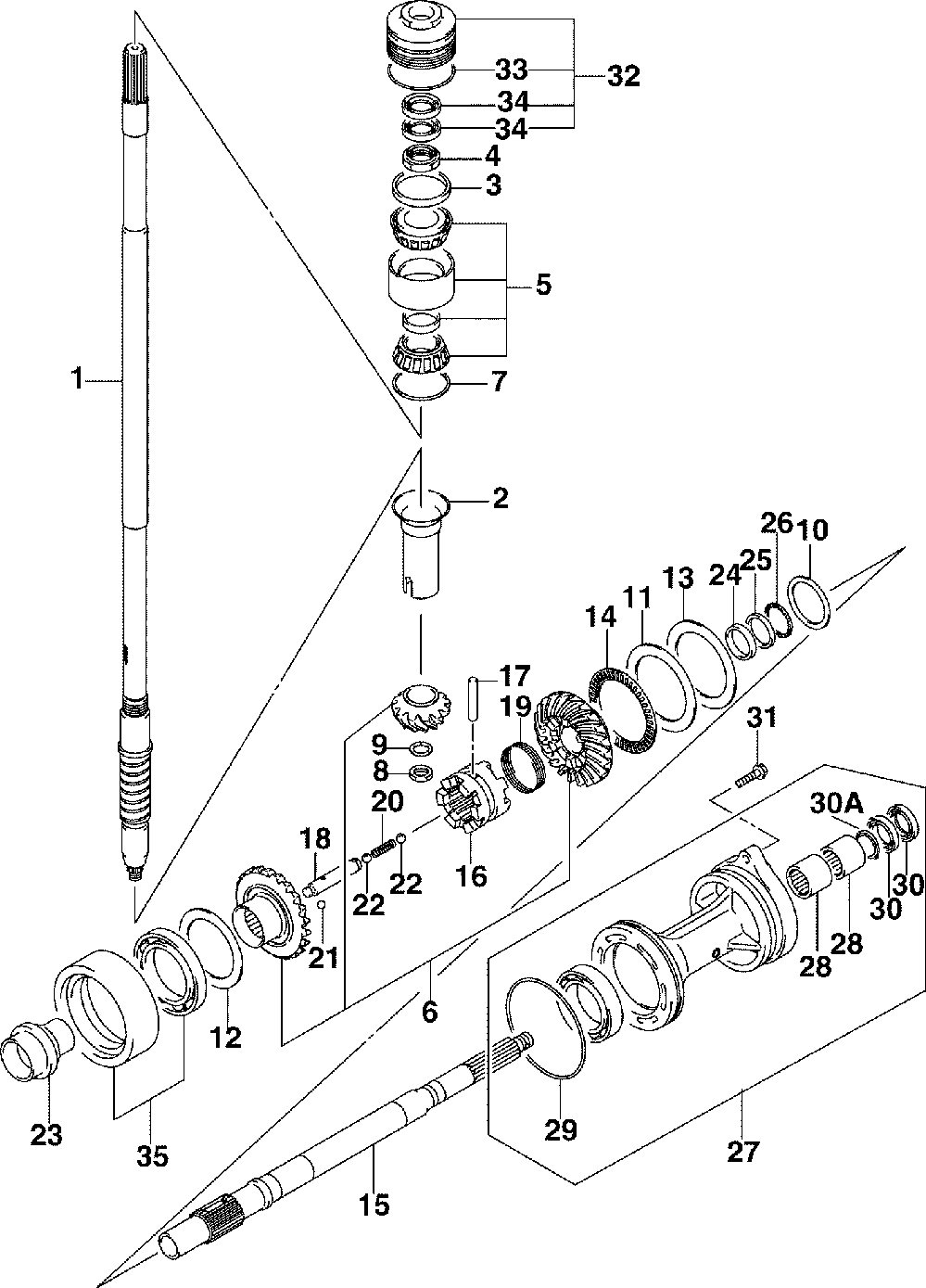

Johnson BJ225CX4O

Трансмиссия

#

oem код

название

цена

1

Shaft Ay, Drive-25"

Shaft Ay, Drive-25"

2

Collar, Driveshaft

Collar, Driveshaft

3

Spacer, D'shaft Brg

Spacer, D'shaft Brg

4

Nut, (m28)

Nut, (m28)

5

Bearing, Drive Shft

Bearing, Drive Shft

6

Pinion/gear Set

Pinion/gear Set

7

Shim, 60x66x0.45

Shim, 60x66x0.45

7

Shim, 60x66x0.50

Shim, 60x66x0.50

7

Shim, 60x66x0.55 (new For 2005 )

Shim, 60x66x0.55 (new For 2005 )

7

Bracket, Stern (new For 2005 )

Bracket, Stern (new For 2005 )

7

Shim, 60x66x0.65

Shim, 60x66x0.65

7

Shim, 60x66x0.70

Shim, 60x66x0.70

7

Shim, 60x66x0.75

Shim, 60x66x0.75

7

Shim, 60x66x0.80

Shim, 60x66x0.80

7

Shim, 60x66x0.85

Shim, 60x66x0.85

7

Shim, 60x66x0.90

Shim, 60x66x0.90

8

Гайка

Гайка

9

Шайба

Шайба

10

Washer, 35x46x0.6

Washer, 35x46x0.6

10

Washer, 35x46x0.8

Washer, 35x46x0.8

10

Washer, 35x46x1.15

Washer, 35x46x1.15

10

Washer, 35x46x1.2

Washer, 35x46x1.2

10

Washer, 35x46x0.90

Washer, 35x46x0.90

10

Washer, 35x46x1.00

Washer, 35x46x1.00

10

Washer, 35x46x0.95

Washer, 35x46x0.95

10

Washer, 35x46x1.10

Washer, 35x46x1.10

10

Washer, 35x46x1.05

Washer, 35x46x1.05

11

Washer, 75x100x2 (forward Gear )

Washer, 75x100x2 (forward Gear )

12

Shim, 60x66x0.45 (reverse Gear )

Shim, 60x66x0.45 (reverse Gear )

12

Shim, 60x66x0.50 (reverse Gear )

Shim, 60x66x0.50 (reverse Gear )

12

Shim, 60x66x0.55 (reverse Gear, New For 2005 )

Shim, 60x66x0.55 (reverse Gear, New For 2005 )

12

Shim, 60x66x0.60 (reverse Gear, New For 2005 )

Shim, 60x66x0.60 (reverse Gear, New For 2005 )

12

Shim, 60x66x0.65 (reverse Gear )

Shim, 60x66x0.65 (reverse Gear )

12

Shim, 60x66x0.70 (reverse Gear )

Shim, 60x66x0.70 (reverse Gear )

12

Shim, 60x66x0.75 (reverse Gear )

Shim, 60x66x0.75 (reverse Gear )

12

Shim, 60x66x0.80 (reverse Gear )

Shim, 60x66x0.80 (reverse Gear )

12

Shim, 60x66x0.85 (reverse Gear )

Shim, 60x66x0.85 (reverse Gear )

12

Shim, 60x66x0.90 (reverse Gear )

Shim, 60x66x0.90 (reverse Gear )

13

Shim, 75x100x0.50 (forward Gear )

Shim, 75x100x0.50 (forward Gear )

13

Shim 75x100x0.55 (new For 2005 )

Shim 75x100x0.55 (new For 2005 )

13

Shim, 75x100x0.60 (forward Gear )

Shim, 75x100x0.60 (forward Gear )

13

Shim, 75x100x0.65 (forward Gear )

Shim, 75x100x0.65 (forward Gear )

13

Shim, 75x100x0.70 (forward Gear )

Shim, 75x100x0.70 (forward Gear )

13

Shim, 75x100x0.75 (forward Gear )

Shim, 75x100x0.75 (forward Gear )

13

Shim, 75x100x0.80 (forward Gear )

Shim, 75x100x0.80 (forward Gear )

13

Shim, 75x100x0.85 (forward Gear )

Shim, 75x100x0.85 (forward Gear )

13

Shim, 75x100x0.90 (forward Gear )

Shim, 75x100x0.90 (forward Gear )

13

Shim, 75x100x0.95 (forward Gear )

Shim, 75x100x0.95 (forward Gear )

13

Shim, 75x100x1.00 (forward Gear )

Shim, 75x100x1.00 (forward Gear )

14

Подшипник опорный

Подшипник опорный

15

Shaft Comp

Shaft Comp

16

Shifter, Clutch Dog

Shifter, Clutch Dog

17

Штифт

Штифт

18

Pin, Connector

Pin, Connector

19

Пружина

Пружина

20

Spring, Detent

Spring, Detent

21

Ball, Detent #1

Ball, Detent #1

22

Ball, Detent #2

Ball, Detent #2

23

Проставка

Проставка

24

Washer, 30x47x6.0

Washer, 30x47x6.0

25

Washer, 32x47x3.0

Washer, 32x47x3.0

26

Подшипник опорный

Подшипник опорный

27

Housing Comp

Housing Comp

28

Подшипник

Подшипник

29

O-ring, Prop

O-ring, Prop

30

Сальник

Сальник

32

Hsg Comp, Dshft Brg

Hsg Comp, Dshft Brg

33

Уплотнительное кольцо

Уплотнительное кольцо

34

Сальник

Сальник

35

Housing Comp

Housing Comp

30A

Circlip (new For 2005 )

Circlip (new For 2005 )
