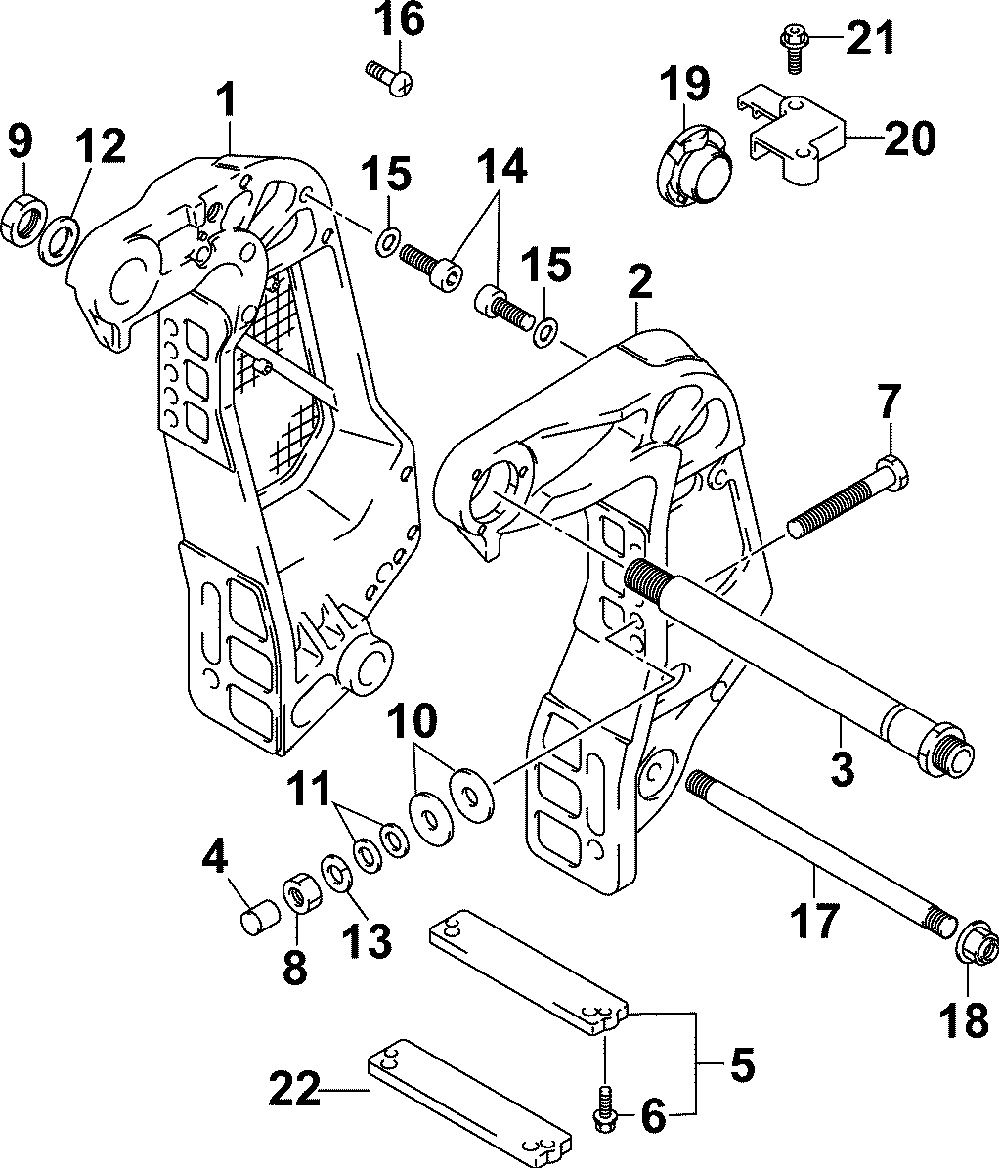

Струбцина

Johnson J115PX4SOR, BJ115PX4SOR
Johnson
#oem кодцена
1
5037197
Bracket, Clamp Stbd (new For 2005 )
2
5035803
Bracket, Stern (new For 2005 )
3
5036608
Shaft, Clamp Brkt (new For 2005 )
4
5030839
Cap, Transom Bolt
5
5030907
Anode Set, Clp Brkt
6
5030391
Болт 6x25
7
5036599
Болт
7
5036557
Bolt & Nut Ay (optional )
8
5030418
Гайка 12mm
9
5032820
Гайка
10
5030436
Washer, 12.5x35x3.2
11
5030438
Washer, 12.5x22x2.5
12
5031846
Washer, 22.5x38x1.0
13
5030462
Шайба
14
5030388
Болт
15
5030057
Шайба
16
5030409
Screw, 6x10
17
5033839
Pin, Tilt Lock (optional )
18
5030426
Nut, 14mm (optional )
19
5034523
Cam Ay, Tilt Switch (new For 2005 )
20
5034524
Holder (new For 2005 )
21
5033965
Болт М6х20
22
5034522
Anode (new For 2005, Optional )
