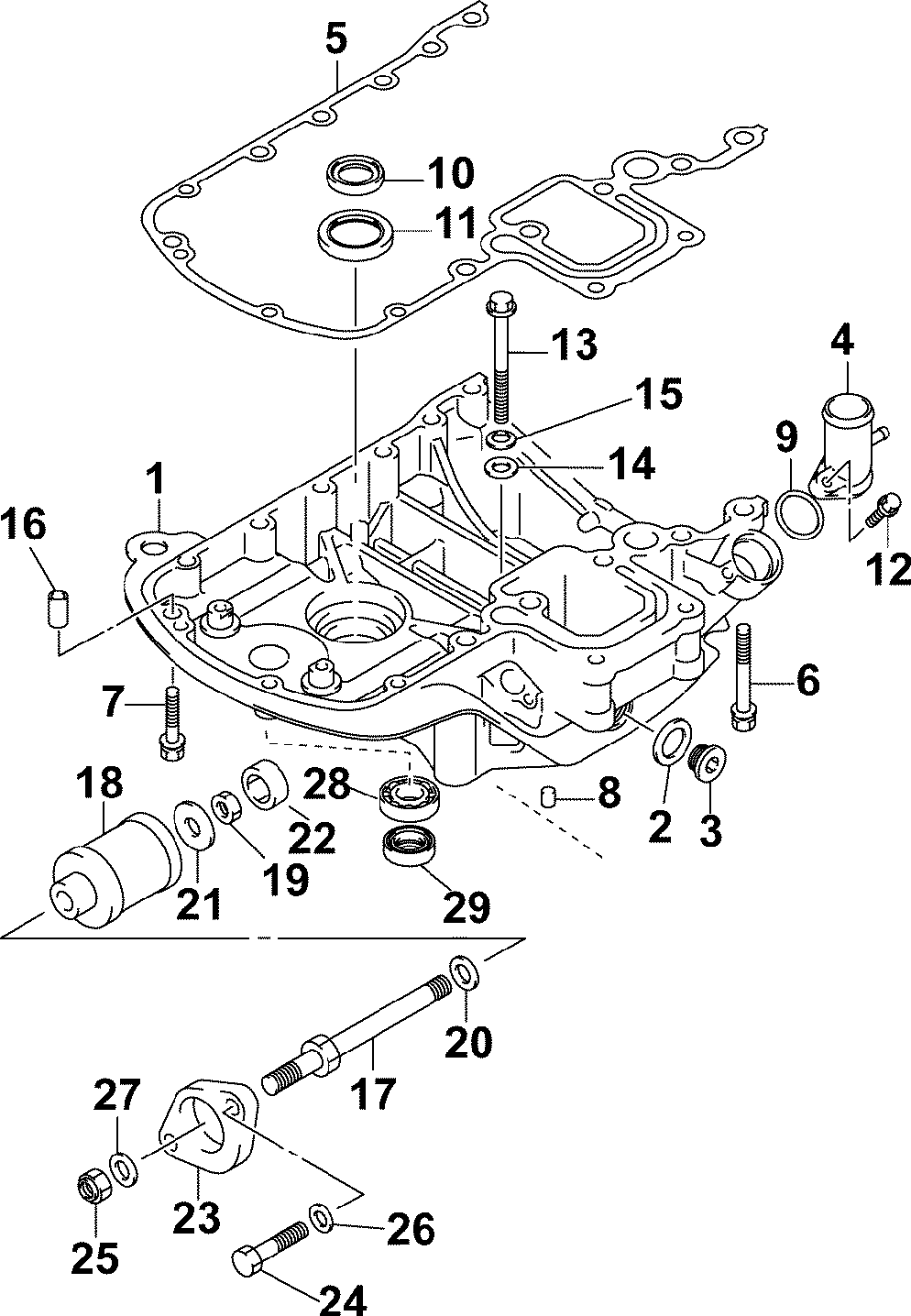

Адаптер глушителя

Johnson J140PL4SOR, BJ140PL4SOC
Johnson
#oem кодцена
1
5036610
Holder Set, Engine
2
5030442
Washer, 18.5x28x2.6 (included In P/n 5034629 )
3
5030522
Plug, 1/4pt, H:7.5 (included In P/n 5034629 )
4
5033841
Union, Water Return
5
5034757
Gasket (new For 2005 )
6
5033587
Болт
7
5035665
Bolt (l:40) (new For 2005 )
8
5030515
Pin, 6.2x8x11
9
5030541
Oring
10
5033611
Seal, Oil (included In P/n 5034629 )
11
5033613
Seal, Oil (included In P/n 5034629 )
12
5030990
Болт
13
5034127
Болт
14
5033591
Washer, 8.5x19x2.3
15
5033596
Wave Wahser
16
5033288
Штифт
17
5036553
Bolt, Upr Mount
18
5033561
Mount, Upper
19
5030419
Гайка 12mm
20
5033594
Washer, 12.5x24x2.5
21
5036480
Washer (12.5x22x3)
22
5033842
Mount, Upper Thrust
23
5033562
Cover, Upper Mount
24
5031609
Болт
25
5031221
Гайка
26
5030057
Шайба
27
5033597
Washer, 13x24x2.50
28
5034630
Bearing, Clutch Sft (included In P/n 5034629 )
29
5034631
Seal, Clutch Shaft (included In P/n 5034629 )
