Трансмиссия -Стандартное вращение Каталог оригинальных запчастей для лодочных моторов Johnson J225PX4SOC (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Johnson
2005
J225PX4SOC
Трансмиссия -Стандартное вращение
Трансмиссия -Стандартное вращение

Трансмиссия -Стандартное вращение

Johnson J225PX4SOC

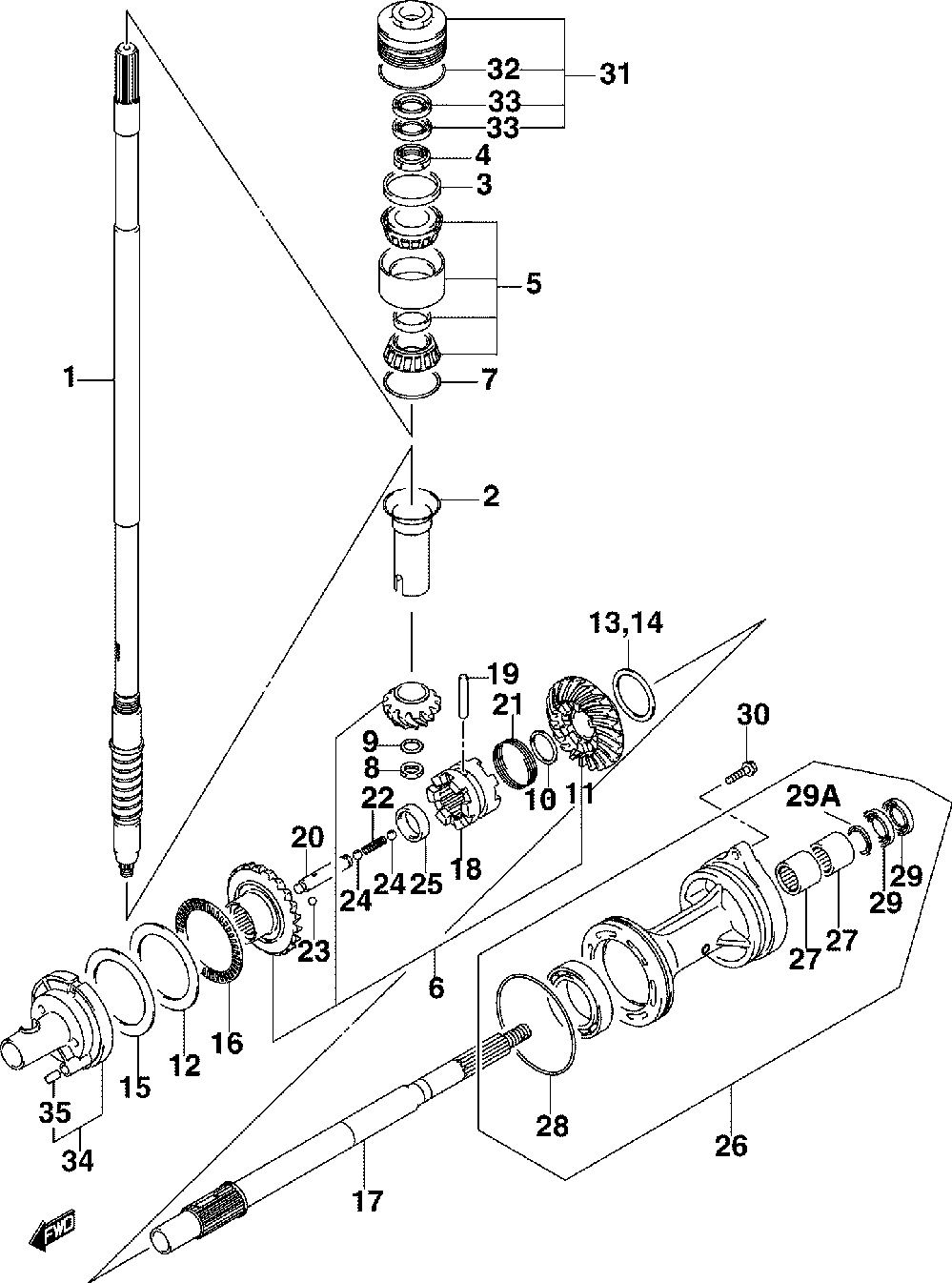

Трансмиссия -Стандартное вращение

#

oem код

название

цена

1

Shaft Ay, Drive-25"

Shaft Ay, Drive-25"

2

Collar, Driveshaft

Collar, Driveshaft

3

Spacer, D'shaft Brg

Spacer, D'shaft Brg

4

Nut, (m28)

Nut, (m28)

5

Bearing, Drive Shft

Bearing, Drive Shft

6

Pinion-gearset

Pinion-gearset

7

Shim, 60x66x0.45

Shim, 60x66x0.45

7

Shim, 60x66x0.50

Shim, 60x66x0.50

7

Shim, 60x66x0.55 (new For 2005 )

Shim, 60x66x0.55 (new For 2005 )

7

Shim, 60x66x0.60 (new For 2005 )

Shim, 60x66x0.60 (new For 2005 )

7

Shim, 60x66x0.65

Shim, 60x66x0.65

7

Shim, 60x66x0.70

Shim, 60x66x0.70

7

Shim, 60x66x0.75

Shim, 60x66x0.75

7

Shim, 60x66x0.80

Shim, 60x66x0.80

7

Shim, 60x66x0.85

Shim, 60x66x0.85

7

Shim, 60x66x0.90

Shim, 60x66x0.90

8

Гайка

Гайка

9

Шайба

Шайба

10

Shim Set, Reverse

Shim Set, Reverse

11

Washer(30x38x1.5)

Washer(30x38x1.5)

11

Washer, T:1.7

Washer, T:1.7

11

Washer, T:1.7

Washer, T:1.7

11

Washer, T:1.9

Washer, T:1.9

11

Washer, T:2.1

Washer, T:2.1

11

Washer (30x38x2.2)

Washer (30x38x2.2)

11

Washer, T:2.3

Washer, T:2.3

11

Washer, T:2.4

Washer, T:2.4

11

Washer (30x38x2.5)

Washer (30x38x2.5)

11

Шайба

Шайба

11

Шайба

Шайба

11

Шайба

Шайба

12

Washer, 75x100x2 (forward Gear )

Washer, 75x100x2 (forward Gear )

13

Shim Set

Shim Set

14

Shim (reverse Gear )

Shim (reverse Gear )

14

Shim, 50x62x1.1 (reverse Gear )

Shim, 50x62x1.1 (reverse Gear )

14

Shim, 50x62x1.2 (reverse Gear )

Shim, 50x62x1.2 (reverse Gear )

14

Shim, 50x62x1.3 (reverse Gear )

Shim, 50x62x1.3 (reverse Gear )

14

Shim, 50x62x1.4 (reverse Gear )

Shim, 50x62x1.4 (reverse Gear )

14

Shim, 50x62x1.5 (reverse Gear )

Shim, 50x62x1.5 (reverse Gear )

14

Shim, 50x62x1.6 (reverse Gear )

Shim, 50x62x1.6 (reverse Gear )

14

Shim, 50x62x1.7 (reverse Gear )

Shim, 50x62x1.7 (reverse Gear )

15

Shim, 75x100x0.50 (forward Gear )

Shim, 75x100x0.50 (forward Gear )

15

Shim 75x100x0.55 (new For 2005 )

Shim 75x100x0.55 (new For 2005 )

15

Shim, 75x100x0.60 (forward Gear )

Shim, 75x100x0.60 (forward Gear )

15

Shim, 75x100x0.65 (forward Gear )

Shim, 75x100x0.65 (forward Gear )

15

Shim, 75x100x0.70 (forward Gear )

Shim, 75x100x0.70 (forward Gear )

15

Shim, 75x100x0.75 (forward Gear )

Shim, 75x100x0.75 (forward Gear )

15

Shim, 75x100x0.80 (forward Gear )

Shim, 75x100x0.80 (forward Gear )

15

Shim, 75x100x0.85 (forward Gear )

Shim, 75x100x0.85 (forward Gear )

15

Shim, 75x100x0.90 (forward Gear )

Shim, 75x100x0.90 (forward Gear )

15

Shim, 75x100x0.95 (forward Gear )

Shim, 75x100x0.95 (forward Gear )

15

Shim, 75x100x1.00 (forward Gear )

Shim, 75x100x1.00 (forward Gear )

16

Подшипник опорный

Подшипник опорный

17

Вал гребново винта

Вал гребново винта

18

Shifter, Clutch Dog

Shifter, Clutch Dog

19

Штифт

Штифт

20

Pin, Connector

Pin, Connector

21

Пружина

Пружина

22

Spring, Detent

Spring, Detent

23

Ball, Detent #1

Ball, Detent #1

24

Ball, Detent #2

Ball, Detent #2

25

Стопор

Стопор

26

Hsg, Propshaft (new For 2005 )

Hsg, Propshaft (new For 2005 )

27

Подшипник

Подшипник

28

O-ring, Prop

O-ring, Prop

29

Сальник

Сальник

31

Hsg Comp, Dshft Brg

Hsg Comp, Dshft Brg

32

Уплотнительное кольцо

Уплотнительное кольцо

33

Сальник

Сальник

34

Hsg Comp, Fgear Brg

Hsg Comp, Fgear Brg

35

Pin, Knock

Pin, Knock

29A

Circlip (new For 2005 )

Circlip (new For 2005 )
